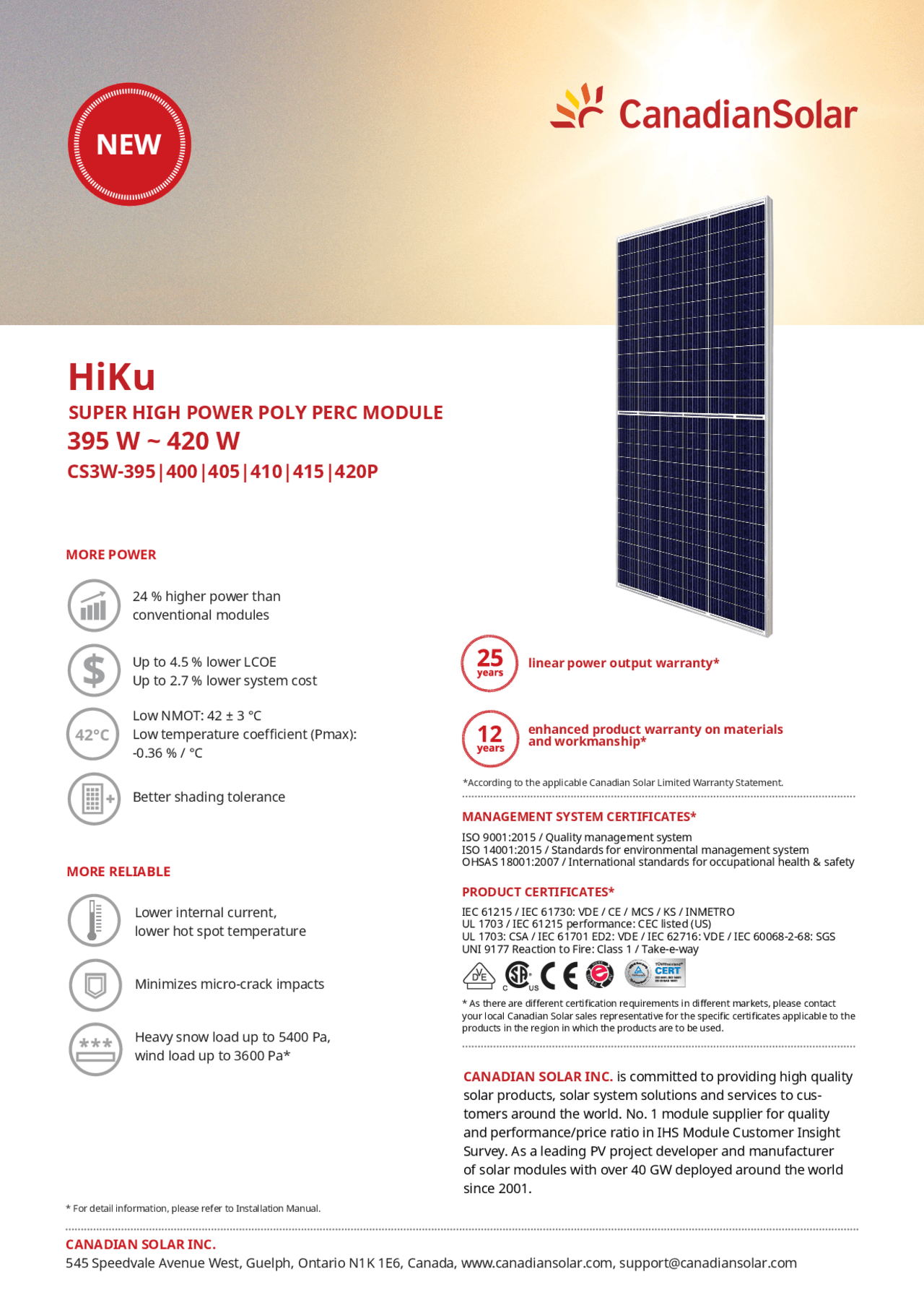

CS3W-395|400|405|410|415|420P
MORE POWER
395 W ~ 420 W
CANADIAN SOLAR INC. is committed to providing high quality
solar products, solar system solutions and services to cus-
tomers around the world. No. 1 module supplier for quality
and performance/price ratio in IHS Module Customer Insight
Survey. As a leading PV project developer and manufacturer
of solar modules with over 40 GW deployed around the world
since 2001.
HiKu
SUPER HIGH POWER POLY PERC MODULE
24 % higher power than
conventional modules
Low NMOT: 42 ± 3 °C
Low temperature coeffi cient (Pmax):
-0.36 % / °C
MORE RELIABLE
Up to 4.5 % lower LCOE
Up to 2.7 % lower system cost
Heavy snow load up to 5400 Pa,
wind load up to 3600 Pa*
42°C
Better shading tolerance
Lower internal current,
lower hot spot temperature
Minimizes micro-crack impacts
IEC 61215 / IEC 61730: VDE / CE / MCS / KS / INMETRO
UL 1703 / IEC 61215 performance: CEC listed (US)
UL 1703: CSA / IEC 61701 ED2: VDE / IEC 62716: VDE / IEC 60068-2-68: SGS
UNI 9177 Reaction to Fire: Class 1 / Take-e-way
* As there are different certifi cation requirements in different markets, please contact
your local Canadian Solar sales representative for the specifi c certifi cates applicable to the
products in the region in which the products are to be used.
PRODUCT CERTIFICATES*
CANADIAN SOLAR INC.
545 Speedvale Avenue West, Guelph, Ontario N1K 1E6, Canada, www.canadiansolar.com, support@canadiansolar.com
ISO 9001:2015 / Quality management system
ISO 14001:2015 / Standards for environmental management system
OHSAS 18001:2007 / International standards for occupational health & safety
MANAGEMENT SYSTEM CERTIFICATES*
linear power output warranty*
enhanced product warranty on materials
and workmanship*
*According to the applicable Canadian Solar Limited Warranty Statement.
12
* For detail information, please refer to Installation Manual.
