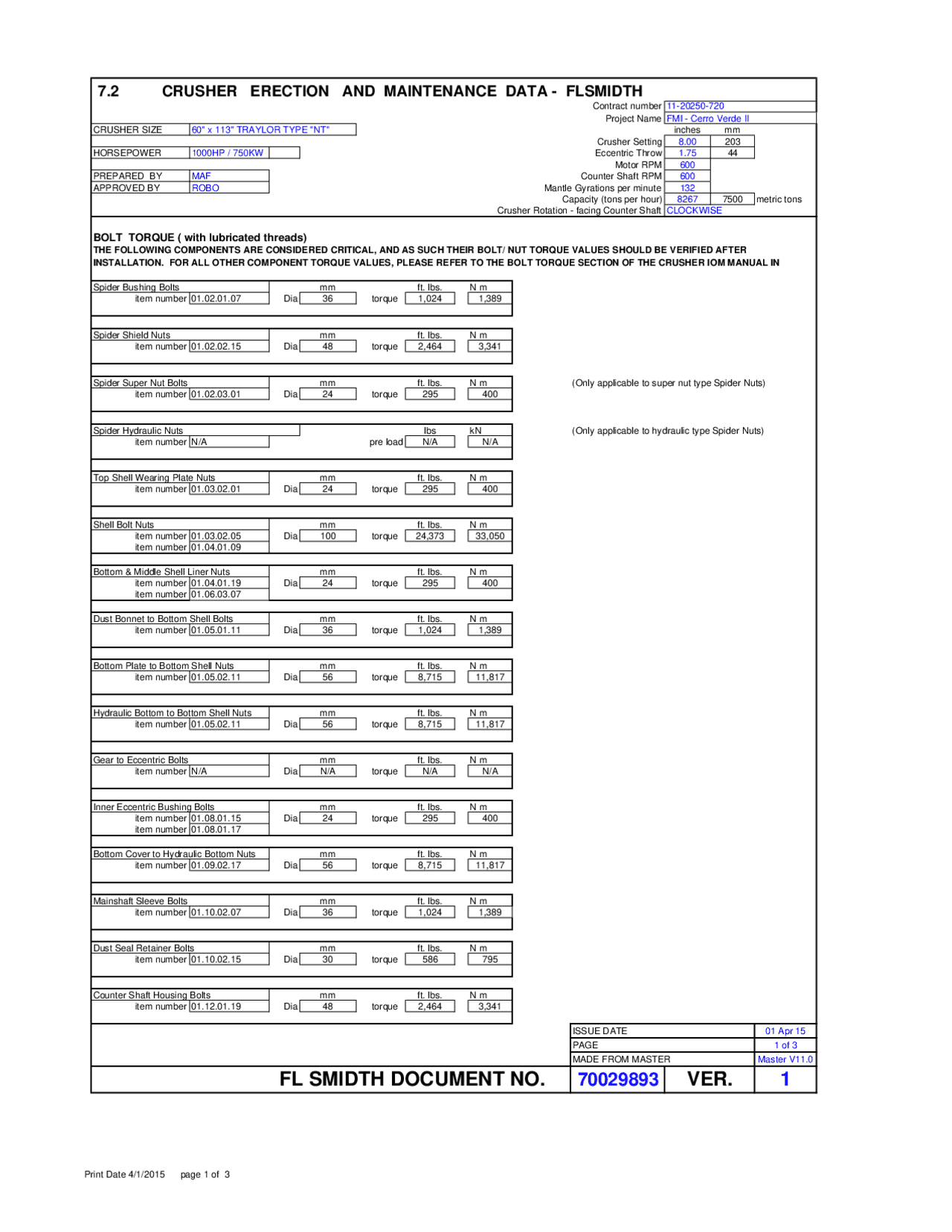

7.2 CRUSHER ERECTION AND MAINTENANCE DATA - FLSMIDTH
Contract number 11-20250-720
Project Name FMI - Cerro Verde II
CRUSHER SIZE 60" x 113" TRAYLOR TYPE "NT" inches mm
Crusher Setting 8.00 203
HORSEPOWER 1000HP / 750KW Eccentric Throw 1.75 44
Motor RPM 600
PREPARED BY MAF Counter Shaft RPM 600
APPROVED BY ROBO Mantle Gyrations per minute 132
Capacity (tons per hour) 8267 7500 metric tons
Crusher Rotation - facing Counter Shaft CLOCKWISE
BOLT TORQUE ( with lubricated threads)
Spider Bushing Bolts mm ft. lbs. N m
item number 01.02.01.07 Dia 36 torque 1,024 1,389
Spider Shield Nuts mm ft. lbs. N m
item number 01.02.02.15 Dia 48 torque 2,464 3,341
Spider Super Nut Bolts mm ft. lbs. N m (Only applicable to super nut type Spider Nuts)
item number 01.02.03.01 Dia 24 torque 295 400
Spider Hydraulic Nuts lbs kN (Only applicable to hydraulic type Spider Nuts)
item number N/A pre load N/A N/A
Top Shell Wearing Plate Nuts mm ft. lbs. N m
item number 01.03.02.01 Dia 24 torque 295 400
Shell Bolt Nuts mm ft. lbs. N m
item number 01.03.02.05 Dia 100 torque 24,373 33,050
item number 01.04.01.09
Bottom & Middle Shell Liner Nuts mm ft. lbs. N m
item number 01.04.01.19 Dia 24 torque 295 400
item number 01.06.03.07
Dust Bonnet to Bottom Shell Bolts mm ft. lbs. N m
item number 01.05.01.11 Dia 36 torque 1,024 1,389
Bottom Plate to Bottom Shell Nuts mm ft. lbs. N m
item number 01.05.02.11 Dia 56 torque 8,715 11,817
Hydraulic Bottom to Bottom Shell Nuts mm ft. lbs. N m
item number 01.05.02.11 Dia 56 torque 8,715 11,817
Gear to Eccentric Bolts mm ft. lbs. N m
item number N/A Dia N/A torque N/A N/A
Inner Eccentric Bushing Bolts mm ft. lbs. N m
item number 01.08.01.15 Dia 24 torque 295 400
item number 01.08.01.17
Bottom Cover to Hydraulic Bottom Nuts mm ft. lbs. N m
item number 01.09.02.17 Dia 56 torque 8,715 11,817
Mainshaft Sleeve Bolts mm ft. lbs. N m
item number 01.10.02.07 Dia 36 torque 1,024 1,389
Dust Seal Retainer Bolts mm ft. lbs. N m
item number 01.10.02.15 Dia 30 torque 586 795
Counter Shaft Housing Bolts mm ft. lbs. N m
item number 01.12.01.19 Dia 48 torque 2,464 3,341
ISSUE DATE 01 Apr 15
PAGE 1 of 3
Master V11.0
70029893 1
THE FOLLOWING COMPONENTS ARE CONSIDERED CRITICAL, AND AS SUCH THEIR BOLT/ NUT TORQUE VALUES SHOULD BE VERIFIED AFTER
INSTALLATION. FOR ALL OTHER COMPONENT TORQUE VALUES, PLEASE REFER TO THE BOLT TORQUE SECTION OF THE CRUSHER IOM MANUAL IN
FL SMIDTH DOCUMENT NO. VER.
MADE FROM MASTER
Print Date 4/1/2015 page 1 of 3
pf3
