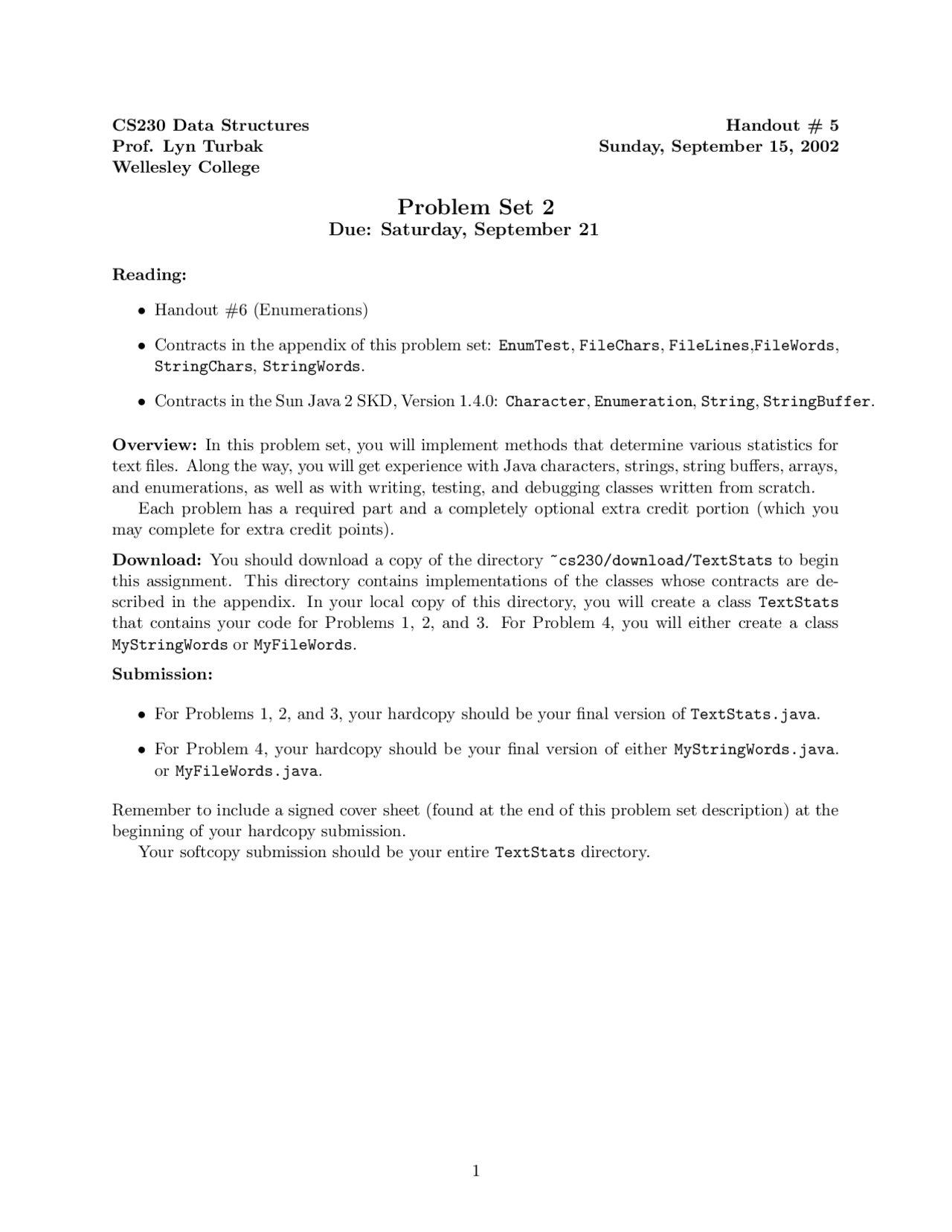

CS230 Data Structures Handout # 5 Prof. Lyn Turbak Sunday, September 15, 2002 Wellesley College
Problem Set 2
Due: Saturday, September 21
Reading:
- Handout #6 (Enumerations)
- Contracts in the appendix of this problem set: EnumTest, FileChars, FileLines,FileWords, StringChars, StringWords.
- Contracts in the Sun Java 2 SKD, Version 1.4.0: Character, Enumeration, String, StringBuffer.
Overview: In this problem set, you will implement methods that determine various statistics for text files. Along the way, you will get experience with Java characters, strings, string buffers, arrays, and enumerations, as well as with writing, testing, and debugging classes written from scratch. Each problem has a required part and a completely optional extra credit portion (which you may complete for extra credit points).
Download: You should download a copy of the directory ~cs230/download/TextStats to begin this assignment. This directory contains implementations of the classes whose contracts are de- scribed in the appendix. In your local copy of this directory, you will create a class TextStats that contains your code for Problems 1, 2, and 3. For Problem 4, you will either create a class MyStringWords or MyFileWords.
Submission:
- For Problems 1, 2, and 3, your hardcopy should be your final version of TextStats.java.
- For Problem 4, your hardcopy should be your final version of either MyStringWords.java. or MyFileWords.java.
Remember to include a signed cover sheet (found at the end of this problem set description) at the beginning of your hardcopy submission. Your softcopy submission should be your entire TextStats directory.
Problem 1 [25]: Word Count
Background Linux has a “word count” command, wc, that reports the number of lines, words, and characters in a file. For example, suppose that:
- tricky.txt is a file whose contents appears in Fig. 1. In the first line, said and ’Hello?’ are separated by a single tab character, as are said and ’Goodbye!’ in the second line.
- initial.txt is a file containing the initial segment of Dr.Seuss’s timeless classic Green Eggs and Ham shown in Fig. 2.
- green.txt is a file containing the full text of Green Eggs and Ham.
"He said ’Hello?’, but I said ’Goodbye!’", she said.///
Figure 1: The contents of tricky.txt.
I am Sam I am Sam Sam I am
That Sam-I-am! That Sam-I-am! I do not like that Sam-I-am!
Do you like green eggs and ham?
I do not like them, Sam-I-am. I do not like green eggs and ham.
Figure 2: The contents of initial.txt.
Here is the result of invoking the wc command on these three files:^1
$ wc tricky.txt 3 9 59 tricky.txt $ wc initial.txt 16 40 185 initial.txt $ wc green.txt 193 786 3465 green.txt (^1) Assume that $ is the Linux prompt, user input is in regular teletype font, and system output is in slanted font.
TextStats.java:6: cannot resolve symbol symbol : class Enumeration location: class TextStats Enumeration lines = new FileLines(filename); ^
- When extracting the next element of an enumeration via a call to nextElement(), recall that the compiler thinks that this method returns an Object. If you are attempting to use the element at some type other than Object (e.g., String or Character), you must downcast it. For example:
String s = (String) (enum.nextElement());
Extra Credit [10] For extra credit, modify my_wc so that it prints its results using the same format as the Linux wc command (in which the three numbers are right justified in columns).
Problem 2 [25]: Character Frequency In this problem, your task is to write a TextStats class method named charFreq that takes a filename as its single argument and displays the frequency (number of occurrences) for each char- acter appearing at least once in the file. The characters and their frequencies should be displayed in ASCII order, one per line, in the format
’char’:freq
where char is a character representation and freq is the number of occurrences of the character in the file. The following char representations should be used for the special characters they denote: \t, \n, \r, \’, ", and \. You should arrange that the main method of TextStats, when invoked with the two ar- guments charFreq and filename, should call your charFreq method on filename. For exam- ple, the result of java TextStats charFreq tricky.txt is shown in Fig. 3 and the result of java TextStats charFreq initial.txt is shown in Fig. 4.
Notes:
- You can maintain a histogram (i.e., occurrence count) for each character in a 128-element array indexed by the ASCII value of the character.
- You need to specially handle the display of the character representations \t, \n, \r, \’, ", and \.
Extra Credit [20] For extra credit, modify charFreq so that it prints character/frequency lines sorted by frequency (from highest to lowest) rather than by ASCII value of the character. Characters with the same frequency should still be sorted by ASCII value of the character.
Problem 3 [25]: Word Frequency In this problem, your task is to write a TextStats class method named wordFreq that takes a filename as its single argument and displays the frequency (number of occurrences) for the lowercase version of each word appearing in a file. The words and their frequencies should be displayed in alphabetical order, one per line, in the format
word:freq
where word is the word (consisting only of lowercase letters, digits, and special characters) and freq is the number of occurrences of each word the file. You should arrange that the main method of TextStats, when invoked with the two arguments wordFreq and filename, should call your wordFreq method on filename. For example, the results of java TextStats wordFreq for tricky.txt, initial.txt, and green.txt are show in Figs. 6–7.
Notes:
- During the semester, we shall see many ways to solve this problem. For now, you should adopt the following strategy:^2 - Store (lowercase versions of) each word into a (growing) array of strings, sorted alpha- betically. If the same word appears multiple times in the file, it should appear the same number of times in the array. For example, here are the sequences of arrays that should be generated in processing a file containing To be or not to be:
to be to be or to be not or to be not or to to be be not or to to
- To insert the next word in alphabetical order into the array, you should find the insertion index – the index at which the next word should be inserted. You can use either linear search or binary search to find this index.
- Each insertion should create a brand new array. After processing n words, the current array should have exactly n elements.
- Once you have an alphabetically sorted array of all words in the file, you can process the array to display the specified frequency table for wordFreq.
- To lowercase a string, you can use the method discussed in class, or simply invoke the appro- priate method from the Java library.
(^2) As we shall see later, this strategy is rather inefficient but there are much more efficient ways to solve the problem.
$ java TextStats wordFreq green.txt
- ’\t’:
- ’\n’:
- ’ ’::
- ’ !’::
- ’\”’:
- ’\’’:
- ’,’::
- ’.’::
- ’/’::
- ’ ?’::
- ’G’::
- ’H’::
- ’I’::
- ’\’:
- ’a’::
- ’b’::
- ’d’::
- ’e’::
- ’h’::
- ’i’::
- ’l’::
- ’o’::
- ’s’::
- ’t’::
- ’u’::
- ’y’::
- ’\n’: $ java TextStats charFreq initial.txt
- ’ ’::
- ’ !’::
- ’,’::
- ’-’::
- ’.’::
- ’ ?’::
- ’D’::
- ’I’::
- ’S’::
- ’T’::
- ’a’::
- ’d’::
- ’e’::
- ’g’::
- ’h’::
- ’i’::
- ’k’::
- ’l’::
- ’m’::
- ’n’::
- ’o’::
- ’r’::
- ’s’::
- ’t’::
- ’u’::
- ’y’::
- a:
- am:
- and:
- anywhere:
- are:
- be:
- boat:
- box:
- car:
- could:
- dark:
- do:
- eat:
- eggs:
- fox:
- goat:
- good:
- green:
- gren:
- ham:
- here:
- house:
- i:
- if:
- in:
- let:
- like:
- may:
- me:
- mouse:
- not:
- on:
- or:
- rain:
- sam:
- sam-i-am:
- say:
- see:
- so:
- thank:
- that:
- the:
- them:
- there:
- they:
- train:
- tree:
- try:
- will:
- with:
- would:
- you:
Problem 4 [25]: Enumerations In the previous problems, you have “worn the user hat” when using implementations of the Enumeration interface to process strings and files. In this problem, you will have a chance to “wear the implementer’s hat” by implementing (from scratch) a class implementing the Enumeration interface. The TextStats directory you downloaded contains the compiled Java files StringWords.class and FileWords.class but it does not contain the source (.java files for the StringWords or FileWords classes. Your task in this problem is to implement one of these classes – you get to choose which one. To avoid confusion, you should name your files MyStringWords.java and MyFileWords.java and name your classes MyStringWords and MyFileWords. This way, when you compile this files, you will not overwrite the existing files StringWords.class and FileWords.class.
Notes applicable to both MyStringWords and MyFileWords:
- In loops involving arrays and strings, it is often necessary to rely on the “short-circuit” nature of the boolean combinators && and ||. That is, in exp1 && exp2, if exp1 evaluates to false, then exp2 is never evaluated. Similarly, in exp1 || exp2, if exp1 evaluates to true, then exp2 is never evaluated. This is especially important in loop continuation conditions such as
((i < a.length) && (x > a[i])),
in which the a[i] in the second expression (if it were evaluated) would signal an array-out- of-bounds exception in the case where (i < a.length) is false.
- An important concept in implementing many objects, but especially enumerations, is an invariant: a relationship between the state variables that holds at the entry and exit of each method. See the specific notes below for appropriate invariants for MyStringWords and MyFileWords.
Notes on MyStringWords:
- The main method of MyStringWords should invoke EnumTest.test on an instance of MyStringWords class whose string is taken from argument to main. For an example, see Fig. 8. For other examples, experiment with StringWords, whose main method has the same desired behavior as that for MyStringWords.
- Handling the special characters ’.’, ’-’, ’ ’, and ’\’’ is tricky. It’s a good idea to first handle purely alphanumeric examples before considering these.
- One way to implement MyStringWords is to use two instance variables: one to hold the string being processed, and the other to hold the “current index” into the string.
- The task of implementing MyStringWords is simplified if the following invariant is observed:
Let s be the string being processed and i be the current index. Then at the exit of the constructor method and at the entry and exit of every call to hasMoreElements() and nextElement(), one of the following two conditions should be true:
- i should equal s.length() (indicating that there are no more elements); or
$ java MyFileWords tricky.txt He said Hello but I said Goodbye she said Total number of elements: 9
Figure 9: An example invocation of the main method of MyFileWords
A Documentation for CS230 Enumeration Classes
In CS230, we will be using several “home-brew” enumeration classes to manipulate files and strings. These classes are documented below.
A.1 EnumTest
The EnumTest class provides a single class method:
public static void test (Enumeration e); Enumerates all the elements from e and displays the string representation of each element, one element per line. For a finite enumeration, after all elements have been enumerated, displays the number of elements that were enumerated.
For example, suppose that StringChars is a class enumerating all the characters from a string (see Sec. A.5). Then executing the statement
EnumTest.test(new StringChars("Hi, how are you?"));
yields the following output:
H i , h o w a r e y o u?
Total number of elements: 16
A.3 FileLines
The FileLines class is an implementation of the Enumeration interface that yields the lines of a given file one by one. Each line includes the terminating newline character, if present. In addition to the hasMoreElements and nextElement instance method required by implementations of Enumeration, FileLines supports the following constructor method and main testing method:
public FileLines (String filename); Create an enumeration that enumerates the lines of the file named by filename.
public static void main (String [] args); Invoke EnumTest.test on new FileLines(args[0]).
For example, suppose tricky.txt is the file described in Problem 1. Then here is an invocation of the main method of FileLines on tricky.txt:
$ java FileLines tricky.txt "He said ’Hello?’,
but I said ’Goodbye!’",
she said.
Total number of elements: 3
In the above example, each pair of lines is separated by a blank line because each line includes a terminating newline in addition to the newline introduced for each line by EnumTest.test.
A.4 FileWords
The FileWords class is an implementation of the Enumeration interface that yields the words of a given file one by one. See Problem 1 for a definition of “word”. In addition to the hasMoreElements and nextElement instance method required by implementations of Enumeration, FileWords sup- ports the following constructor method and main testing method:
public FileWords (String filename); Create an enumeration that enumerates the words of the file named by filename.
public static void main (String [] args); Invoke EnumTest.test on new FileWords(args[0]).
For example, suppose tricky.txt is the file described in Problem 1. Then here is an invocation of the main method of FileWords on tricky.txt:
$ java FileWords tricky.txt He said Hello but I said Goodbye she said Total number of elements: 9
A.6 StringWords
The StringWords class is an implementation of the Enumeration interface that yields the words of a given string one by one. See Problem 1 for a definition of “word”. In addition to the hasMoreElements and nextElement instance method required by implementations of Enumeration, StringWords supports the following constructor method and main testing method:
public StringWords (String s); Create an enumeration that enumerates the words of s.
public static void main (String [] args); Invoke EnumTest.test on new StringWords(args[0]).
For example:
$ java StringWords "She asked, "Did you pay $19.99 for ’Pocohantas’?"" She asked Did you pay
for Pocohantas Total number of elements: 8
