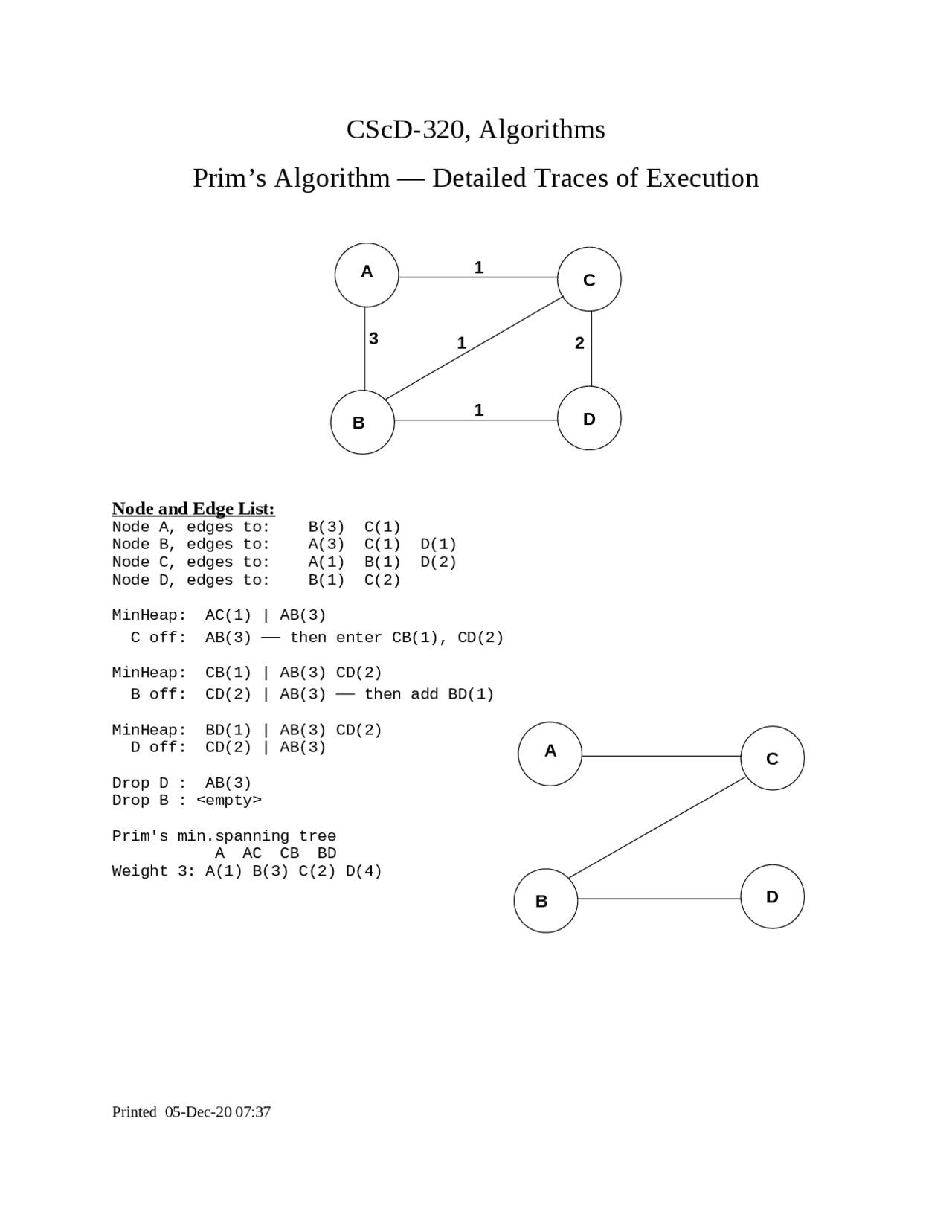

CScD-320, Algorithms
Prim’s Algorithm — Detailed Traces of Execution
A
B
C
D
3
1
1
1 2
Node and Edge List:
Node A, edges to: B(3) C(1)
Node B, edges to: A(3) C(1) D(1)
Node C, edges to: A(1) B(1) D(2)
Node D, edges to: B(1) C(2)
MinHeap: AC(1) | AB(3)
C off: AB(3) — then enter CB(1), CD(2)
MinHeap: CB(1) | AB(3) CD(2)
B off: CD(2) | AB(3) — then add BD(1)
MinHeap: BD(1) | AB(3) CD(2)
D off: CD(2) | AB(3)
Drop D : AB(3)
Drop B : <empty>
Prim's min.spanning tree
A AC CB BD
Weight 3: A(1) B(3) C(2) D(4)
Printed 05-Dec-20 07:37
A
B
C
D
