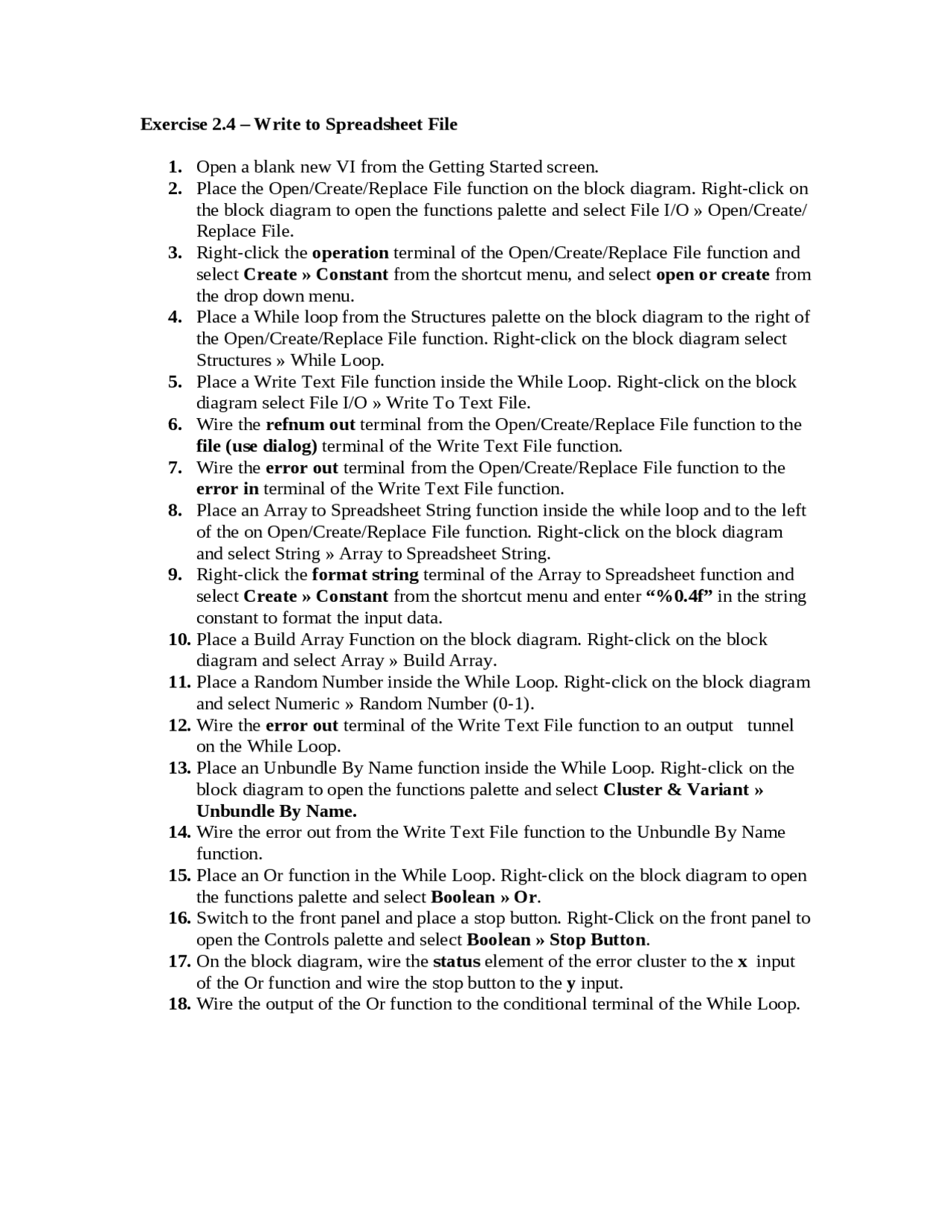

Exercise 2.4 – Write to Spreadsheet File
1. Open a blank new VI from the Getting Started screen.
2. Place the Open/Create/Replace File function on the block diagram. Right-click on
the block diagram to open the functions palette and select File I/O » Open/Create/
Replace File.
3. Right-click the operation terminal of the Open/Create/Replace File function and
select Create » Constant from the shortcut menu, and select open or create from
the drop down menu.
4. Place a While loop from the Structures palette on the block diagram to the right of
the Open/Create/Replace File function. Right-click on the block diagram select
Structures » While Loop.
5. Place a Write Text File function inside the While Loop. Right-click on the block
diagram select File I/O » Write To Text File.
6. Wire the refnum out terminal from the Open/Create/Replace File function to the
file (use dialog) terminal of the Write Text File function.
7. Wire the error out terminal from the Open/Create/Replace File function to the
error in terminal of the Write Text File function.
8. Place an Array to Spreadsheet String function inside the while loop and to the left
of the on Open/Create/Replace File function. Right-click on the block diagram
and select String » Array to Spreadsheet String.
9. Right-click the format string terminal of the Array to Spreadsheet function and
select Create » Constant from the shortcut menu and enter “%0.4f” in the string
constant to format the input data.
10. Place a Build Array Function on the block diagram. Right-click on the block
diagram and select Array » Build Array.
11. Place a Random Number inside the While Loop. Right-click on the block diagram
and select Numeric » Random Number (0-1).
12. Wire the error out terminal of the Write Text File function to an output tunnel
on the While Loop.
13. Place an Unbundle By Name function inside the While Loop. Right-click on the
block diagram to open the functions palette and select Cluster & Variant »
Unbundle By Name.
14. Wire the error out from the Write Text File function to the Unbundle By Name
function.
15. Place an Or function in the While Loop. Right-click on the block diagram to open
the functions palette and select Boolean » Or.
16. Switch to the front panel and place a stop button. Right-Click on the front panel to
open the Controls palette and select Boolean » Stop Button.
17. On the block diagram, wire the status element of the error cluster to the x input
of the Or function and wire the stop button to the y input.
18. Wire the output of the Or function to the conditional terminal of the While Loop.
