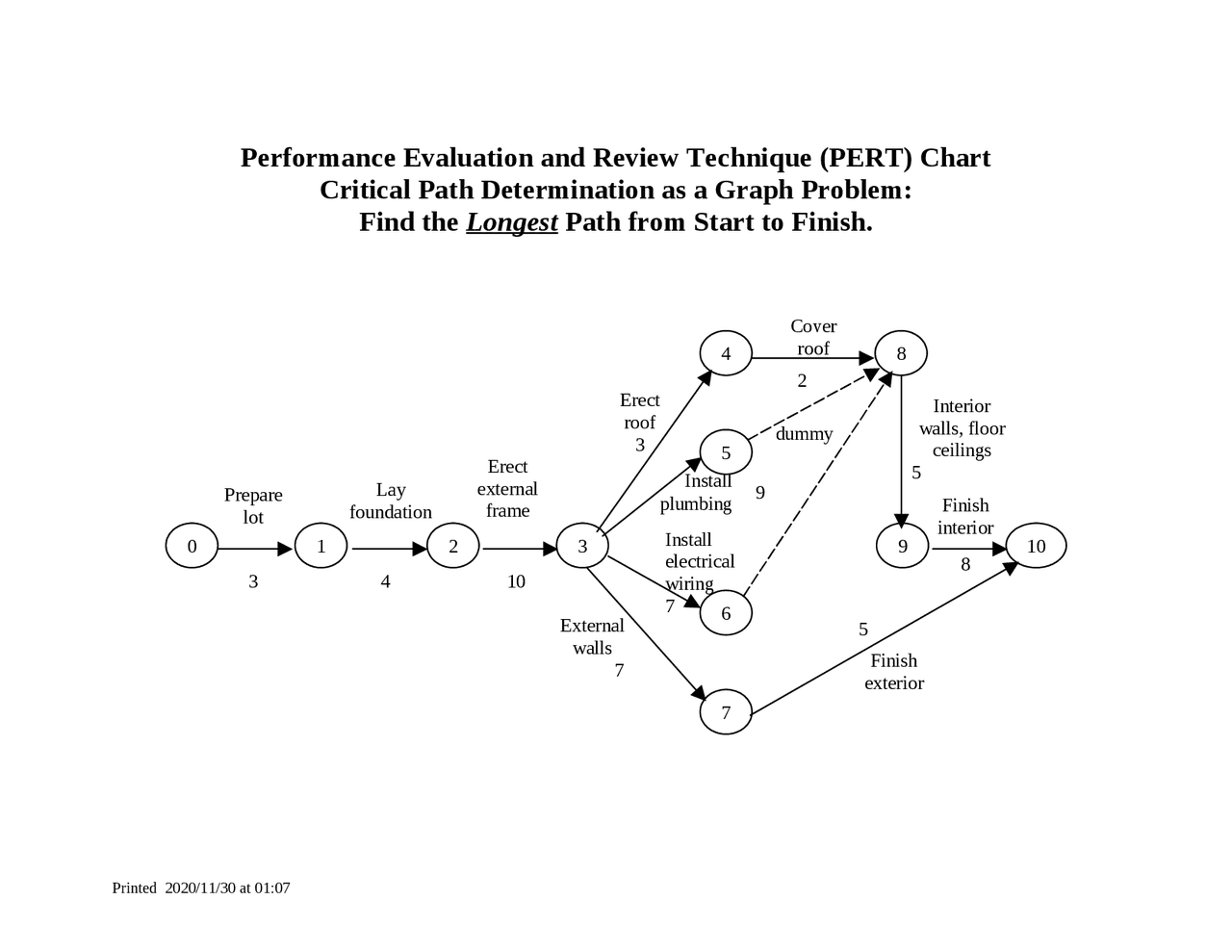

How to determine the critical path in a pert chart using dijkstra's algorithm. The steps to calculate the shortest and longest paths from the start to the finish of a project, with a given pert chart as an example. It also lists all the simple paths and their total distances.
Typology: Study notes
1 / 2
This page cannot be seen from the preview
Don't miss anything!
Printed 2020/11/30 at 01:
Minimum Path: Available from Dijkstra’s Algorithm Dijkstra's algorithm Starting from 0 0 to 1 (3) 1 to 2 (4) 2 to 3 (10) 3 to 4 (3) 4 to 8 (2) 3 to 7 (7) 3 to 6 (7) 3 to 5 (9) 8 to 9 (5) 7 to 10 (5) Total distance: 55 Path end-point to trace from: 10 10 <-- 7 <-- 3 <-- 2 <-- 1 <-- 0 Total distance: 29 Longest path requires examining all paths: Listing of All Simple Paths: 0 to 1 (3) 1 to 2 (4) 2 to 3 (10) 3 to 4 (3) 4 to 8 (2) 8 to 9 (5) 9 to 10 (8) Total: 35 0 to 1 (3) 1 to 2 (4) 2 to 3 (10) 3 to 5 (9) 5 to 8 (1) 8 to 9 (5) 9 to 10 (8) Total: 40 0 to 1 (3) 1 to 2 (4) 2 to 3 (10) 3 to 6 (7) 6 to 8 (1) 8 to 9 (5) 9 to 10 (8) Total: 38 0 to 1 (3) 1 to 2 (4) 2 to 3 (10) 3 to 7 (7) 7 to 10 (5) Total: 29 Printed 2020/11/30 at 01:
