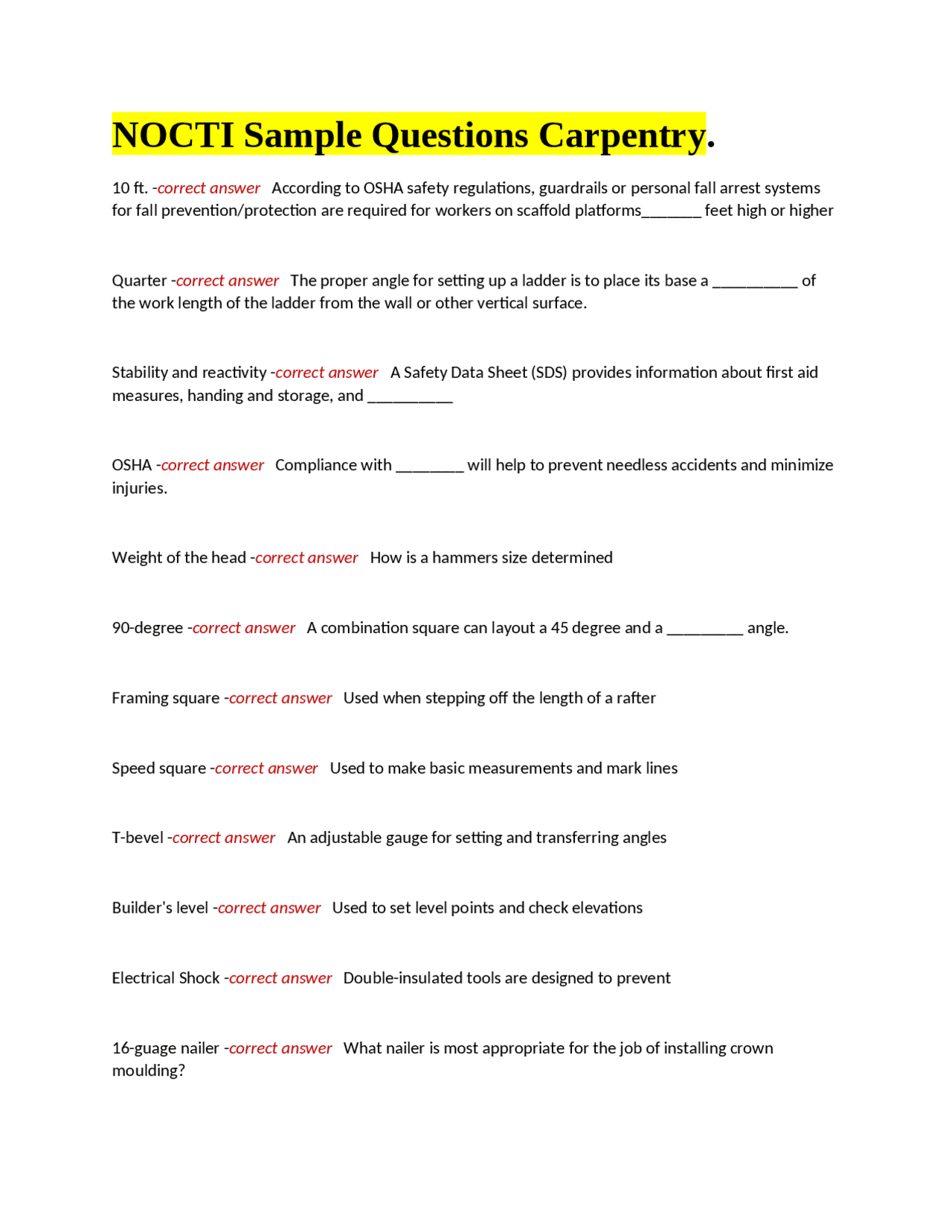

NOCTI Sample Questions Carpentry
Typology: Exams
1 / 5
This page cannot be seen from the preview
Don't miss anything!
10 ft. - correct answer According to OSHA safety regulations, guardrails or personal fall arrest systems for fall prevention/protection are required for workers on scaffold platforms_______ feet high or higher Quarter - correct answer The proper angle for setting up a ladder is to place its base a __________ of the work length of the ladder from the wall or other vertical surface. Stability and reactivity - correct answer A Safety Data Sheet (SDS) provides information about first aid measures, handing and storage, and __________ OSHA - correct answer Compliance with ________ will help to prevent needless accidents and minimize injuries. Weight of the head - correct answer How is a hammers size determined 90-degree - correct answer A combination square can layout a 45 degree and a _________ angle. Framing square - correct answer Used when stepping off the length of a rafter Speed square - correct answer Used to make basic measurements and mark lines T-bevel - correct answer An adjustable gauge for setting and transferring angles Builder's level - correct answer Used to set level points and check elevations Electrical Shock - correct answer Double-insulated tools are designed to prevent 16-guage nailer - correct answer What nailer is most appropriate for the job of installing crown moulding?
18-guage nailer - correct answer What nailer is MOST appropriate for installing baseboard shoe moulding? Concrete symbol - correct answer Earth symbol - correct answer 10 feet, 0 inches - correct answer On a drawing where 1/4 inch= 1 foot, a line measuring 2-1/2 inches represents an actual distance of... 12 feet - correct answer On a drawing where 1/4 inch= 1-1/2 feet, a line measuring 2 inches represents an actual distance of... 10 feet, 6 inches - correct answer On a drawing where 3/4 inch= 1 foot, a line measuring 14 inches represents an actual distance of... Plot - correct answer A plan giving precise location f manmade features located on a property. Elevation - correct answer The hight above or below a fixed reference point Foundation - correct answer Part of a structural system that supports and anchors a building Center Line - correct answer Hidden Line - correct answer Break Line - correct answer Brick seat - correct answer A ledge on a footing for supporting a course of masonry.
Rim Board - correct answer Identify the rim board Sub Flooring - correct answer Identify the sub flooring Cooper - correct answer Appropriate material used for roof flashing Soffit vent and ridge vent - correct answer Method to ventilate an attic in a hip roof 13 - correct answer How many 4-feet by 8-feet drywall sheets are needed to fully cover all walls and the ceiling of a room that is 12 feet wide and 8 feet long by 8 feet high Resistance to heat loss - correct answer The R-value of insulation refers to its The warm side of the house - correct answer Where is the vapor barrier located in an exterior wall? The cold side of the house - correct answer What direction is the insulation with a vapor barrier located in an exterior wall RHR - correct answer The door in the diagram has a _______ door swing 1-3/8 inches to 1-3/4 inches - correct answer Manufactured doors range in thickness from... Identify component "F" in the photo - correct answer Baseboard - correct answer Identify the white trim in the photo Mullion - correct answer Name for the white trim with in the glass
Crown moulding - correct answer Identify the trim 5/8 convert to a decimal - correct answer. 1/8 convert to a decimal - correct answer. 3/8 convert to a decimal - correct answer. 7/8 convert to a decimal - correct answer. 30 cm - correct answer What is the perimeter of this figure 42 cm - correct answer What is the perimeter of this figure 54 cm sq - correct answer What is the area of the figure below 64 cm sq - correct answer What is the area of the figure below
