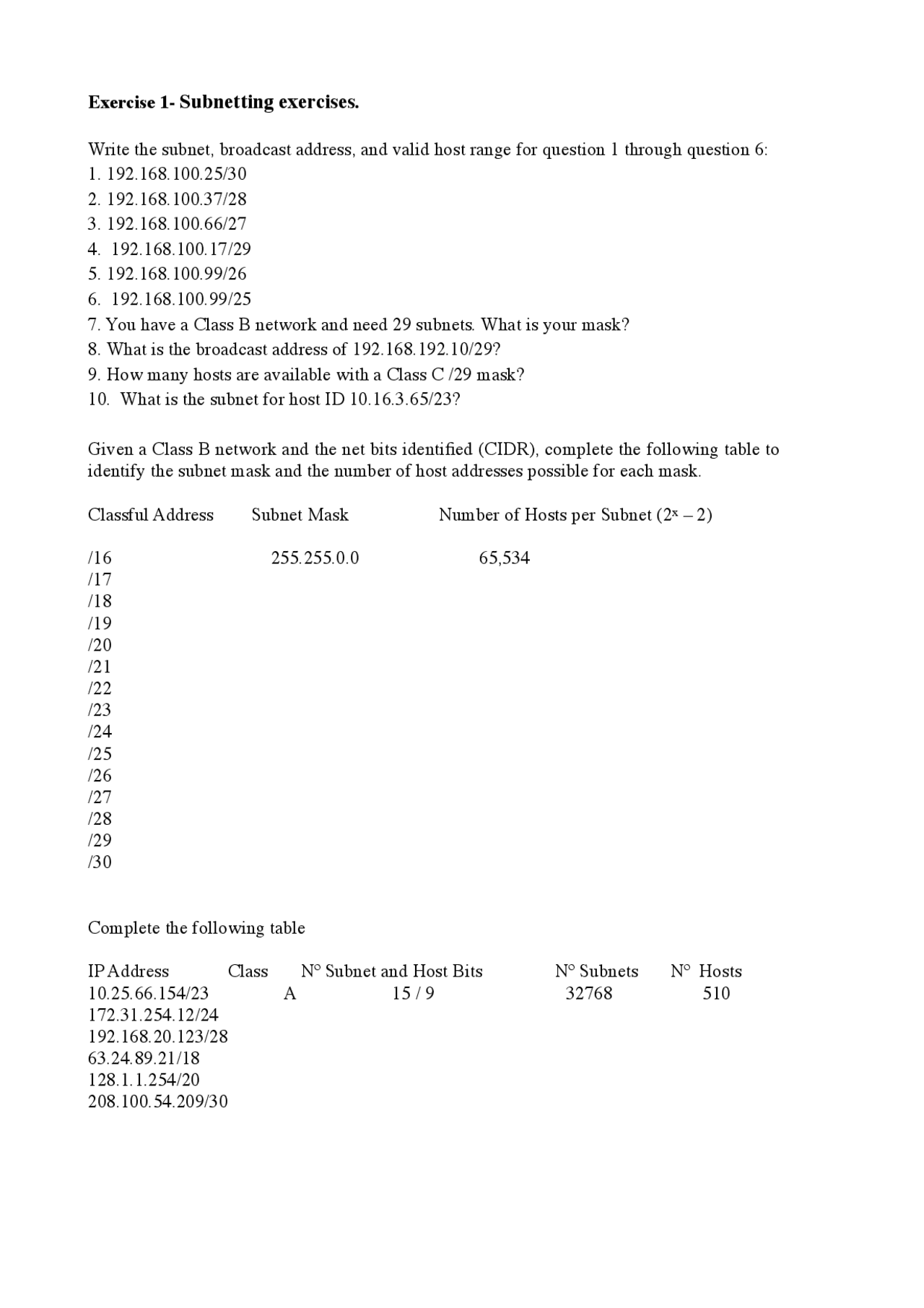

Exercise 1- Subnetting exercises.!
!
Write the subnet, broadcast address, and valid host range for question 1 through question 6: !
1. 192.168.100.25/30 !
2. 192.168.100.37/28 !
3. 192.168.100.66/27 !
4. 192.168.100.17/29 !
5. 192.168.100.99/26 !
6. 192.168.100.99/25 !
7. You have a Class B network and need 29 subnets. What is your mask? !
8. What is the broadcast address of 192.168.192.10/29? !
9. How many hosts are available with a Class C /29 mask? !
10. What is the subnet for host ID 10.16.3.65/23?!
!
Given a Class B network and the net bits identified (CIDR), complete the following table to
identify the subnet mask and the number of host addresses possible for each mask. !
!
Classful Address Subnet Mask ! Number of Hosts per Subnet (2x – 2) !
!
/16 !!!! 255.255.0.0!!!65,534!
/17 !
/18 !
/19 !
/20 !
/21 !
/22 !
/23 !
/24 !
/25 !
/26 !
/27 !
/28 !
/29 !
/30!
!
!
Complete the following table!
!
IP Address !! Class Nº Subnet and Host Bits ! Nº Subnets Nº Hosts !
10.25.66.154/23 ! A!!!15 / 9!!!!32768! ! 510!
172.31.254.12/24 !
192.168.20.123/28 !
63.24.89.21/18 !
128.1.1.254/20 !
208.100.54.209/30
