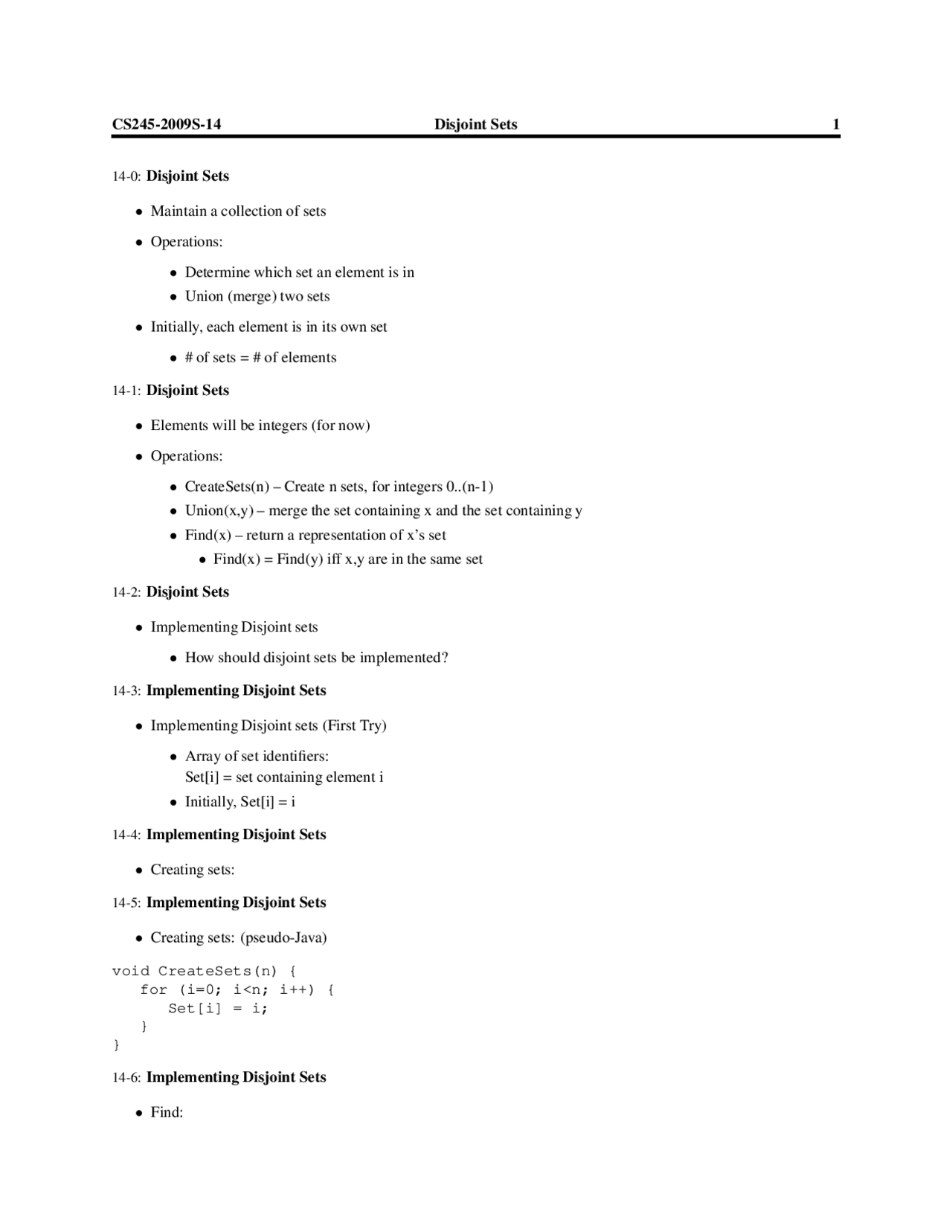

14-0: Disjoint Sets
- Maintain a collection of sets
- Operations:
- Determine which set an element is in
- Union (merge) two sets
- Initially, each element is in its own set
14-1: Disjoint Sets
- Elements will be integers (for now)
- Operations:
- CreateSets(n) – Create n sets, for integers 0..(n-1)
- Union(x,y) – merge the set containing x and the set containing y
- Find(x) – return a representation of x’s set
- Find(x) = Find(y) iff x,y are in the same set
14-2: Disjoint Sets
- Implementing Disjoint sets
- How should disjoint sets be implemented?
14-3: Implementing Disjoint Sets
- Implementing Disjoint sets (First Try)
- Array of set identifiers: Set[i] = set containing element i
- Initially, Set[i] = i
14-4: Implementing Disjoint Sets
14-5: Implementing Disjoint Sets
- Creating sets: (pseudo-Java)
void CreateSets(n) { for (i=0; i<n; i++) { Set[i] = i; } }
14-6: Implementing Disjoint Sets
14-7: Implementing Disjoint Sets
int Find(x) { return Set[x]; }
14-8: Implementing Disjoint Sets
14-9: Implementing Disjoint Sets
void Union(x,y) { set1 = Set[x]; set2 = Set[y];
for (i=0; i < n; i=+) if (Set[i] == set2) Set[i] = set1; }
14-10: Disjoint Sets Θ()
14-11: Disjoint Sets Θ()
- CreateSets: Θ(n)
- Find: Θ(1)
- Union: Θ(n)
14-12: Disjoint Sets Θ()
- CreateSets: Θ(n)
- Find: Θ(1)
- Union: Θ(n)
We can do better! (At least for Union ...) 14-13: Implementing Disjoint Sets II
- Store elements in trees
- All elements in the same set will be in the same tree
- Find(x) returns the element at the root of the tree containing x
14-18: Implementing Disjoint Sets II
14-19: Implementing Disjoint Sets II
- Find:
- Follow parent pointers, until root is reached.
- Root is node with null parent pointer.
- Return element at root
14-20: Implementing Disjoint Sets II
int Find(x) { Node tmp = Sets[x]; while (tmp.parent != null) tmp = tmp.parent; return tmp.element; }
14-21: Implementing Disjoint Sets II
14-22: Implementing Disjoint Sets II
- Union(x,y)
- Calculate:
- Root of x’s tree, rootx
- Root of y’s tree, rooty
- Set parent(rootx) = rooty
14-23: Implementing Disjoint Sets II
void Union(x,y) { rootx = Find(x); rooty = Find(y); Sets[rootx].parent = Sets[rooty]; }
14-24: Removing pointers
- We don’t need any pointers
- Instead, use index into set array
14-25: Removing pointers
- Union(2,3), Union(6,8), Union(0,2), Union(2,6)
14-26: Removing pointers
- Union(2,3), Union(6,8), Union(0,2), Union(2,8)
14-27: Implementing Disjoint Sets III
int Find(x) { while (Parent[x] != -1) x = Parent[x] return x }
14-28: Implementing Disjoint Sets II
void Union(x,y) { rootx = Find(x); rooty = Find(y); Parent[rootx] = rooty; }
- If trees are the same size, increase (decrease) new parent by 1.
14-37: Union by Rank
void Union(x,y) { rootx = Find(x); rooty = Find(y); if (Parent[rootx] < Parent[rooty]) { Parent[rooty] = x; } else { if Parent[rootx] == Parent[rooty] Parent[rooty]--; Parent[rootx] = rooty; } }
14-38: Path Compression
- After each call to Find(x), change x’s parent pointer to point directly at root
- Also, change all parent pointers on path from x to root
14-39: Implementing Disjoint Sets III
int Find(x) { if (Parent[x] < 0) return x; else { Parent[x] = Find(Parent[x]); return Parent[x]; } }
14-40: Disjoint Set Θ
- Time to do a Find / Union proportional to the depth of the trees
- “Union by Rank” tends to keep tree sizes down
- “Path compression” makes Find and Union causes trees to flatten
- Union / Find take roughly time O(1) on average
14-41: Disjoint Set Θ
- Technically, n Find/Unions take time O(n lg∗^ n)
- lg∗^ n is the number of times we need to take lg of n to get to 1.
- lg 2 = 1, lg∗^ 2 = 1
- lg(lg 4) = 1, lg∗^ 4 = 2
- lg(lg(lg 16)) = 1, lg∗^ 16 = 3
- lg(lg(lg(lg 65536))) = 1, lg∗^ 65536 = 4 -...
- lg∗^265536 = 5
of atoms in the universe ≈ 1080 ≪ 265536
- lg∗^ n <= 5 for all practical values of n
