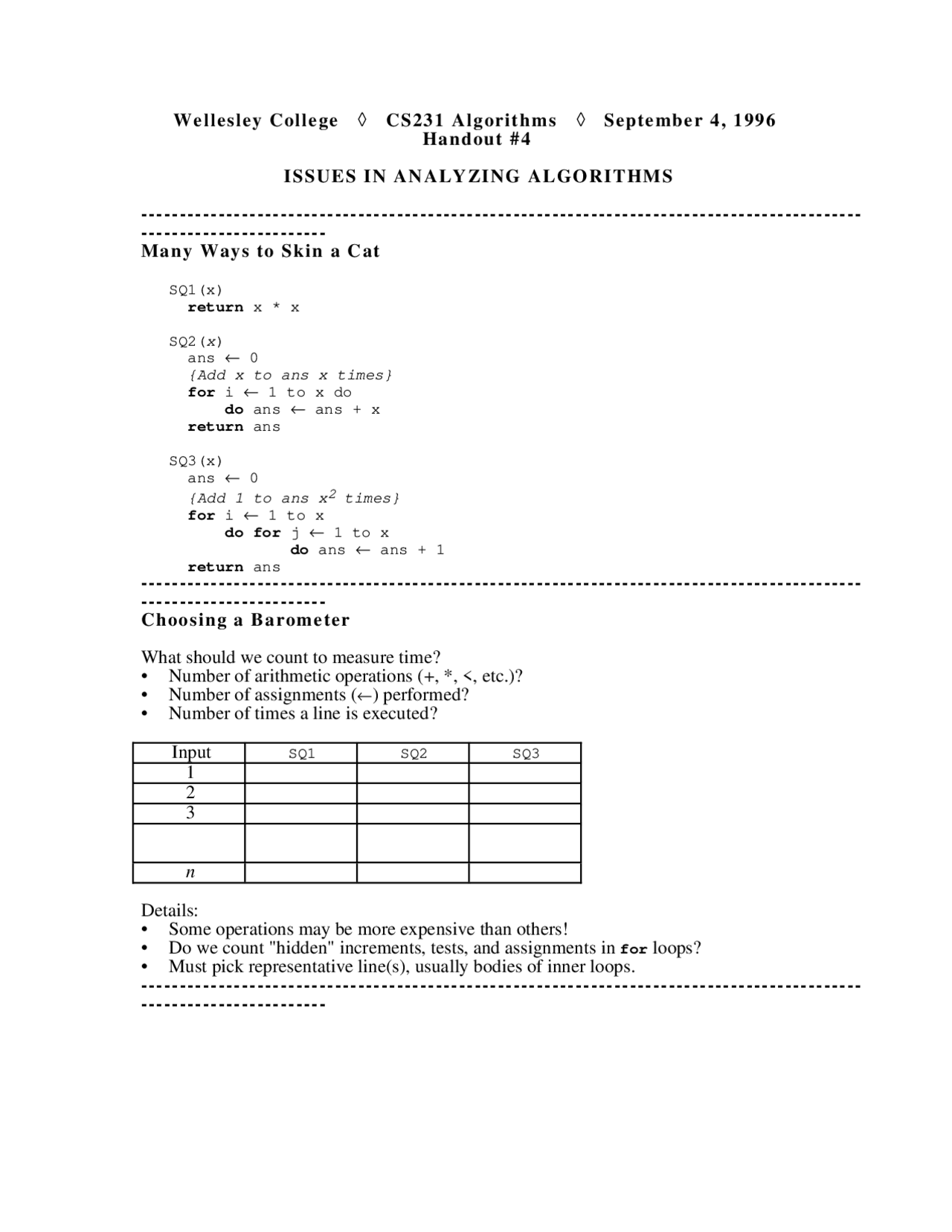

Wellesley College ◊ CS231 Algorithms ◊ September 4, 1996 Handout #
ISSUES IN ANALYZING ALGORITHMS
**---------------------------------------------------------------------------------------------
Many Ways to Skin a Cat**
SQ1(x) return x * x
SQ2( x ) ans ← 0 {Add x to ans x times} for i ← 1 to x do do ans ← ans + x return ans
SQ3(x) ans ← 0 {Add 1 to ans x^2 times} for i ← 1 to x do for j ← 1 to x do ans ← ans + 1 return ans **---------------------------------------------------------------------------------------------
Choosing a Barometer**
What should we count to measure time?
- Number of arithmetic operations (+, *, <, etc.)?
- Number of assignments (←) performed?
- Number of times a line is executed?
Input SQ1 SQ2 SQ 1 2 3
n
Details:
- Some operations may be more expensive than others!
- Do we count "hidden" increments, tests, and assignments in for loops?
- Must pick representative line(s), usually bodies of inner loops. --------------------------------------------------------------------------------------------- ------------------------
Model of Computation
Running times depend on model of computation!
Sequential vs. Parallel (see Takis's Parallel Algorithms Course)
Typically assume that numerical operations take constant time.
- Addition would take linear time if model only supported increment operations.
- In practice, operations take time proportional to number of bits (lg n ). **---------------------------------------------------------------------------------------------
Measuring Input Size**
Standard assumptions:
- Size of numerical input is the input itself
- Size of array input is length of array
Not always obvious:
- Size of tree may be number of nodes or height.
- Size of number n may be n or number of bits (lg n ).
Can have more than one size:
- Searching for string of length m in text of length n.
- Processing a graph with V vertices and E edges. **---------------------------------------------------------------------------------------------
Running Time for a Particular Input Size**
Running time may differ greatly for different inputs of the same size. How to characterize?
- Worst-case analysis: consider maximum time for every input size. - Best-case analysis: consider minimum time for every input size (not a good idea!). - Average-case analysis : expected running time based on probability
Example: Insertion Sort
Example of good ol' divide-and-conquer :
- divide a problem into subproblems
- conquer the subproblems by solving them recursively
- combine the solutions of the subproblems to form the solution of the whole problem
InsertionSort(A, k) Sort A[1..k] via insertion sort method Initially call Merge-Sort(A,1,length[A]) if n > 0 A[1..0] = empty array is trivially sorted; do nothing then InsertionSort(A, k - 1) Insert(A, k)
Insert(A, i) Assume A[1..i-1] is sorted. Make A[1..i] sorted if i > 1 A[1..1] is trivially sorted; do nothing then if LessThan(A, i - 1, i) Is A[i-1] < A[i]? then Swap(A, i - 1, i) Swap contents of A[i-1] and A[i] Insert(A, i - 1)
**---------------------------------------------------------------------------------------------
Analysis of Insert**
Worst-Case i #Calls to Insert #LessThans #Swaps 1 2 3
n
Best-Case i #Calls to Insert #LessThans #Swaps 1 2 3
n
Average-Case i #Calls to Insert #LessThans #Swaps 1 2 3
n
**---------------------------------------------------------------------------------------------
Analysis of InsertionSort**
Worst-Case k #Calls to Insertion-Sort
#Calls to Insert
#LessThans #Swaps
1 2 3
n
Best-Case k #Calls to Insertion-Sort
#Calls to Insert
#LessThans #Swaps
1 2 3
n
AverageCase k #Calls to Insertion-Sort
#Calls to Insert
#LessThans #Swaps
1 2 3
n
Another Version of Insertion Sort
CLR version of insertion sort:
- no procedure call overhead.
- iterative algorithm.
- invariant : A[1..j] is in sorted order after every iteration of for loop.
- see CLR for detailed analysis.
Insertion-Sort(A) for j ← 2 to length[A] do key ← A[j] Insert A[j] into the sorted sequence A[1..j-1]. i ← j- while i > 0 and A[i] > key do A[i + 1] ← A[i]
Merge Sort
Idea : Divide array into two equal-sized subproblems, recursively sort, then merge results.
Merge-Sort(A, p, r) Sort A[p..r] by insertion sort method. Initially call Merge-Sort(A,1,length[A]). if p < r then q ← (p + r) / 2 Merge-Sort(A, p, q) Merge-Sort(A, q + 1, r) Merge(A, p, q, r)
Merge left as an exercise. **---------------------------------------------------------------------------------------------
The Next Three Lectures**
Asymptotic Notation: coarse-grained comparisons of algorithms.
Recurrences: coarse-grained analysis of algorithms.
Probability: tools for average-case analysis.
--------------------------------------------------------------------------------------------- ------------------------
Pop Quiz
What's is the main topic of this course?
- Quotes of the Vice President.
- Patterns of growth in water flora.
- Recipes and resources.
- Habits of accompanying male friends.
