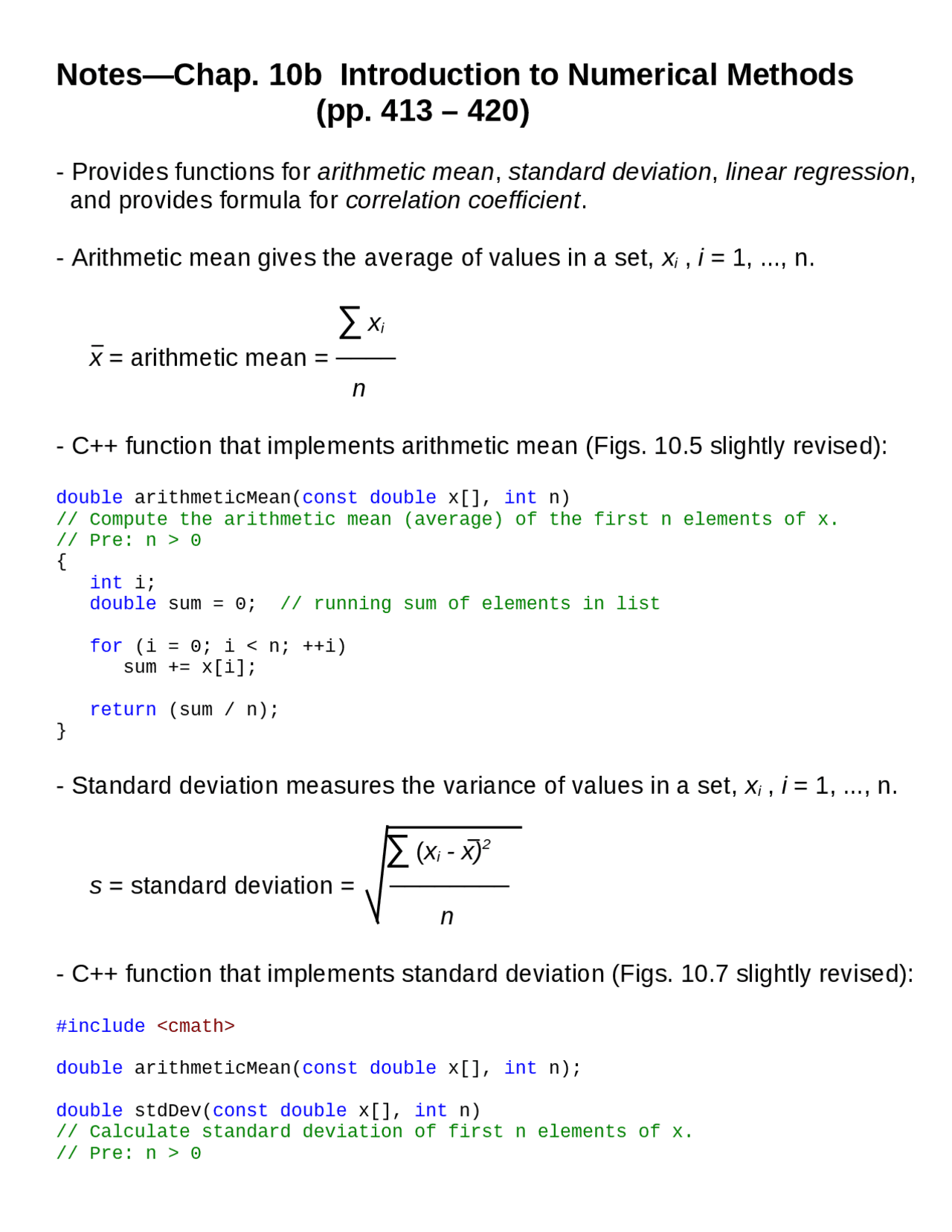

Notes—Chap. 10b Introduction to Numerical Methods
(pp. 413 – 420)
- Provides functions for arithmetic mean, standard deviation, linear regression,
and provides formula for correlation coefficient.
- Arithmetic mean gives the average of values in a set, xi , i = 1, ..., n.
xi
x = arithmetic mean = ────
n
- C++ function that implements arithmetic mean (Figs. 10.5 slightly revised):
double arithmeticMean(const double x[], int n)
// Compute the arithmetic mean (average) of the first n elements of x.
// Pre: n > 0
{
int i;
double sum = 0; // running sum of elements in list
for (i = 0; i < n; ++i)
sum += x[i];
return (sum / n);
}
- Standard deviation measures the variance of values in a set, xi , i = 1, ..., n.
(xi - x)2
s = standard deviation = ────────
n
- C++ function that implements standard deviation (Figs. 10.7 slightly revised):
#include <cmath>
double arithmeticMean(const double x[], int n);
double stdDev(const double x[], int n)
// Calculate standard deviation of first n elements of x.
// Pre: n > 0
pf3
pf4

Partial preview of the text

Download Numerical Methods: Mean, Deviation, Regression, and Correlation - Prof. Bryon Ehlmann and more Study notes Computer Science in PDF only on Docsity!

Notes—Chap. 10b Introduction to Numerical Methods

(pp. 413 – 420)

- Provides functions for arithmetic mean , standard deviation , linear regression ,

and provides formula for correlation coefficient.

- Arithmetic mean gives the average of values in a set, xi , i = 1, ..., n.

∑ xi

x = arithmetic mean = ────

n

- C++ function that implements arithmetic mean (Figs. 10.5 slightly revised):

double arithmeticMean(const double x[], int n) // Compute the arithmetic mean (average) of the first n elements of x. // Pre: n > 0 { int i; double sum = 0; // running sum of elements in list for (i = 0; i < n; ++i) sum += x[i]; return (sum / n); }

- Standard deviation measures the variance of values in a set, xi , i = 1, ..., n.

∑ ( xi - x)

2

s = standard deviation = ────────

n

- C++ function that implements standard deviation (Figs. 10.7 slightly revised):

#include double arithmeticMean(const double x[], int n); double stdDev(const double x[], int n) // Calculate standard deviation of first n elements of x. // Pre: n > 0

double mean; // arithmetic mean double dev; // deviation of a list element from mean double devSqrSum = 0; // running sum of squares of deviations int i; mean = arithmeticMean(x, n); for (i = 0; i < n; ++i) { dev = x[i] - mean; devSqrSum += dev * dev; } return (sqrt(devSqrSum / n)); }

- Linear regression fits a linear function to a set of points, ( xi , yi ), i = 1, ..., n,

i.e., establishes a y = mx + b relationship between an independent

variable x and a dependent variable y where

∑ ( xi - x) ( yi - y)

m = ────────────

∑ ( xi - x)

2

b = y – m x

- C++ function that computes m and b (Anwer to Review Question 1 on

p. 419, slightly revised):

double arithmeticMean(const double x[], int n); void linearRegression(const double x[], const double y[], int n, double& m, double& b) // Approximate the slope m and y-intercept b of a line fitted to // a set of n (x, y) points defined by the first n elements // of the given arrays x and y. // Note: Use the least-squares line fitting method. { double xMean, yMean, xDev, // deviation of an x from xMean xyDiffSum = 0, // running sums xDiffSquaredSum = 0; xMean = arithmeticMean(x, n); yMean = arithmeticMean(y, n);

for(i = 0; i < n; ++i) { xSum += x[i]; ySum += y[i]; xyProductSum += (x[i] * y[i]); xSquaredSum += (x[i] * x[i]); ySquaredSum += (y[i] * y[i]); } r = ((n * xyProductSum) - (xSum * ySum)) / (sqrt((n * xSquaredSum) - (xSum * xSum)) * sqrt((n * ySquaredSum) - (ySum * ySum))); return r; }

  • Questions?
