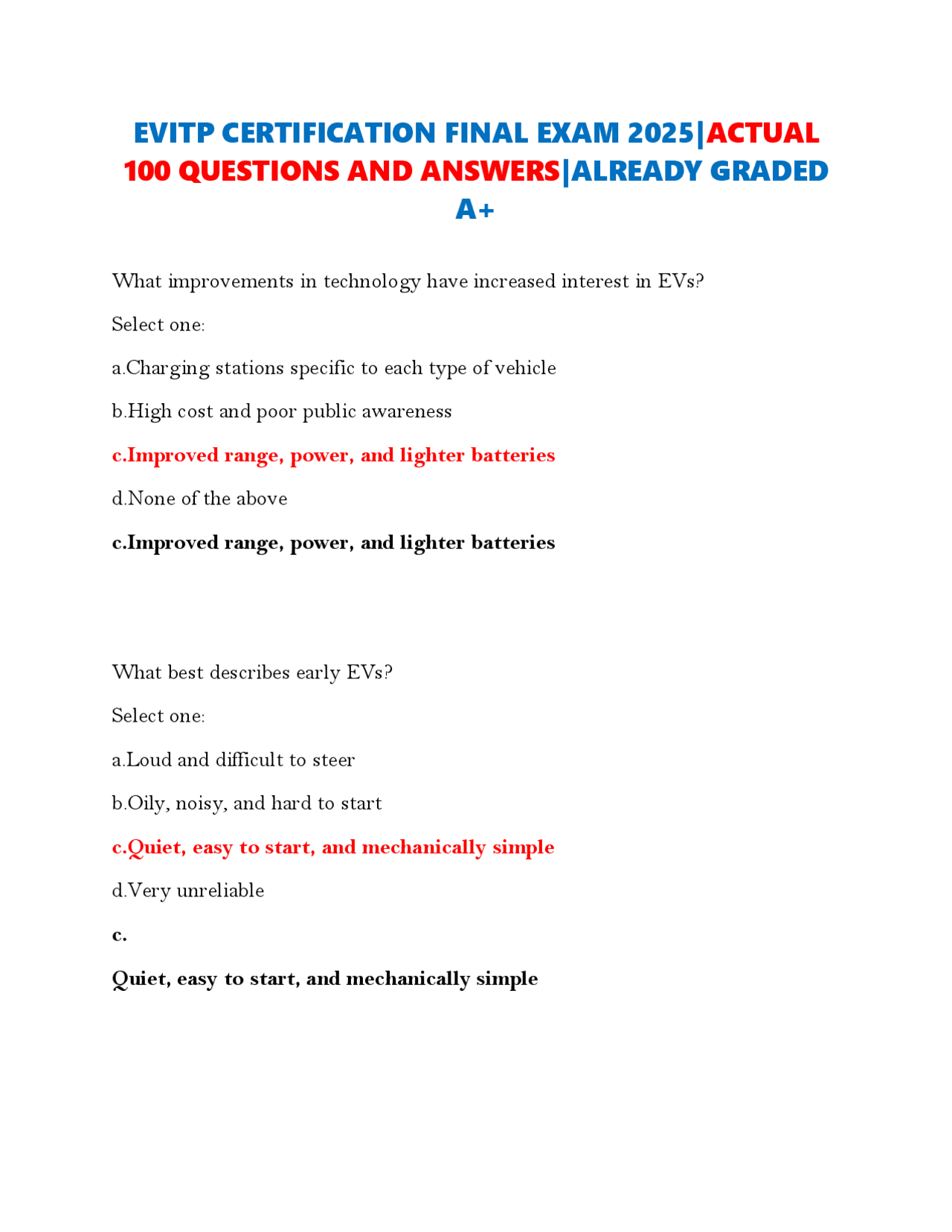

EVITP CERTIFICATION FINAL EXAM 2025|ACTUAL
100 QUESTIONS AND ANSWERS|ALREADY GRADED
A+
What improvements in technology have increased interest in EVs? Select one: a.Charging stations specific to each type of vehicle b.High cost and poor public awareness c.Improved range, power, and lighter batteries d.None of the above c.Improved range, power, and lighter batteries What best describes early EVs? Select one: a.Loud and difficult to steer b.Oily, noisy, and hard to start c.Quiet, easy to start, and mechanically simple d.Very unreliable c. Quiet, easy to start, and mechanically simple
Which of the following is not a category of electric vehicles? Select one: a.BEV b.HEV c.ICE d.PHEV c.ICE What category of EV has been available to consumers the longest? a.BEV b.HEV c.PHEV d.All of the above b.HEV Which of the following describes a plug-in electric vehicle that runs on batteries until nearly depleted, then switches over to an ICE generator to extend the battery range? Select one: a.BEV b.PHEV c.All electric vehicles have this capability.
What types of commercial/industrial vehicles are currently available in an electrified version? Select one: a.Cargo and material-handling equipment b.Delivery vans and buses c.Semi-trailer trucks d.All of the above d.All of the above Charging methods for battery electric buses include which of the following? Select one: a.Above/below bus charging wireless charging b.Plug-in charging c.Wireless power transfer d.All of the above d.All of the above Fleet vehicle battery capacity has reached upward of? for heavy duty vehicles. Select one: a.500 Wh b.10 kWh
c.550 kWh d.none of the above c.550 kWh Charging is defined as which of the following? Select one: a.Refilling brake fluid in an EV b.Removing the batteries from an EV and placing them inside charging equipment c.Replacing batteries in an EV d.Supplying power (kW) to an EV battery d.Supplying power (kW) to an EV battery The first EV chargers were external and supplied DC current directly to the vehicle's batteries. Select one: a.True b.False a.True Which of the following was an early electric vehicle charger?
c.Hardware fault detection d.Both b. and c. d.Both b. and c. EVSE provides DC power to the electric vehicle charging port. Select one: True False False DC charging equipment provides DC directly to? in an EV. Select one: a.battery management systems b.battery monitoring devices c.charge multiplier systems d.current management systems a.battery management systems An AC charger with a single-phase 120-volt connection and 14-16 amperes of continuous current output is classified as a? charger. Select one:
a.Level 1 b.Level 2 c.low-voltage d.SAE standard a.Level 1 The purpose of the J1772 connector pins is to provide?. Select one: a.a charging interface that is safe for consumers to use b.a means to signal the EVSE to stop charging based on the pin contact state c.signals to the EVSE that the connector is properly seated on the vehicle d.all of the above d.all of the above Which of the following is true about the J1772 standard control pilot terminal pin's function? Select one: a.It changes the state of the EVSE according to the voltage present. b.It defines the state of the EVSE. c.It uses a +12V to - 12V AC square wave signal. d.All of the above d.All of the above
d.TEPCO a.CHAdeMO The CHAdeMO V1.0 Standard has charging power up to? at? , up to?. Select one: a.62.5 kW / 500 VDC / 125 A b.350 kW / 480 VDC / 80 A c.400 kW / 1,000 VDC / 400 A d.1 MW / 2,200 VDC / 800 A a.62.5 kW / 500 VDC / 125 A Wireless charging is more expensive than coupled EVSE. Select one: True False True Which of the following is not true of EV charging networks? Select one:
a.Charging networks offer both paid memberships and free memberships with pay-as-you-go charging. b.There are over a dozen networks across the U.S. and Canada. c.They allow businesses a way to draw consumers to charging equipment and generate revenue via transaction processing. d.None of the above d.None of the above EV networks generate revenue with which of the following? Select one: a.Call-to-pay b.Membership fees c.Station usage fees d.All of the above d.All of the above The National Electrical Code (NEC)?. Select one: a.covers all electrical work, from utility generation to household wiring b.is not intended to provide requirements for installation that safeguard persons and property from the hazards arising from the use of electricity c.provides minimum installation requirements
Select one: a.xxx. b.xxx. c.xxx. d.xxx. b.xxx. The maximum amount of current a conductor can carry under the conditions of use without exceeding its temperature rating is found using the calculation methods based in Article 310. Select one: True False True Requirements for branch circuits and AFCI/GFCI protection of branch circuits are found in?. Select one: a.Article 200 b.Article 210 c.Article 230 d.Article 240
b.Article 210 The tables in Article 310 identify?. Select one: a.allowable ampacity of conductors based on conductor size and material b.ampacity adjustment and correction factors c.wire types and application d.all of the above d.all of the above According to Article 625, EVSE is equipment that has the specific purpose of transferring energy from? to the electric vehicle. Select one: a.a DC power source b.a generator c.the premises wiring system d.the utility c.the premises wiring system Overcurrent protection for EVSE is covered in?. Select one:
When an EV and EVSE is used to facilitate power supply as an interactive power production source, which article must be applied? Select one: a.Article 700 b.Article 702 c.Article 704 d.Article 705 d.Article 705 When an EV and its EVSE is used as a power supply for an optional standby system, requirements found in? are applied. Select one: a.Article 700 b.Article 702 c.Article 704 d.Article 705 b.Article 702 The NECA 413-2012 Standard is the only ANSI-approved standard for EVSE installation and maintenance.
Select one: True False True NECA 413-2012 contains? requirements for EVSE installation, covering everything from planning an installation to ADA considerations and commissioning process. Select one: a.basic b.complete c.performance-based d.suggested c.performance-based Level 2 EVSEs with a rating of 6.6 kilowatts can supply? of charge current when operating at 220 VAC. Select one: a.20 A b.30 A c.40 A d.50 A
Note: T250.122 - 40 A Circuit = 10 AWG CU equipment ground A 32,000 square foot office building has 120 20-ampere, 120-volt duplex receptacle outlets. What is the branch circuit receptacle load? Select one: a.9,600 VA b.21,600 VA c.28,000 VA d.32,000 VA d.32,000 VA Note: 220.14(K) - use largest of either 1 VA per square foot or 180 VA per outlet. 180 VA × 120 = 21,600 VA32,000 ft2 × 1 VA = 32,000 VA An existing 400-ampere, 120/208-volt, 3-phase, 4-wire service has 30 kilovolt- amperes of non-continuous load and 58 kilovolt-amperes of continuous load. How much more continuous load can be added to the service? (Note: Use 1.732 for the square root of 3.)
Select one: a.33,281.92 VA b.41,436 VA c.102.5 kVA d.143.93 kVA a.33,281.92 VA Note: 30 kVA + (58 kVA × 1.25) = 102.5 kVA 400 A × 208 V × 1.732 = 144,102.4 VA Remaining VA available prior to continuous load correction = 41,602.4 VA 41,602 VA × 0.8 = 33,281.92 VA A Level II EVSE with a rating of 32 amperes at 208 volts is installed. What is the minimum size copper equipment grounding conductor required to serve the installation? Select one: a.10 AWG b.8 AWG c.6 AWG d.4 AWG
