Consultorio dental proyecto completo, Schemes and Mind Maps of Dentistry

Pontificia Universidad Católica de Puerto Rico - MayaguezDentistry
Prof. Tulia Perea

plantas arquitectónicas, cotas, ejes, escala 1:50

Typology: Schemes and Mind Maps

2024/2025

Uploaded on 02/12/2025

daana-pina-1
daana-pina-1 🇺🇸

1 document

1 / 1

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1
ALMACÉN
SILLA
DENTAL Y
RAYOS X
SILLA
DENTAL Y
RAYOS X
ÁREA DE
ESTERILIZACIÓN
ÁREA DE
ESTERILIZACIÓN
MEDIO
BAÑO
MEDIO
BAÑO
MEDIO
BAÑO
RECEPCIÓN
SALA DE
ESPERA
ACCESO
ABCDEF
1
2
3
5
1.76m 2.47m
4.23m 2.40m 4.23m
10.85m
1.65m
1.78m
2.38m
0.34m
0.82m
0.68m 1.10m 0.63m1.13m 1.54m 1.24m
1.79m
0.76m
2.37m
5.02m
1.65m
4.09m
1.23m
6
4
12.00m
A-01
A
A-02
A
3.40m
2.74m
0.41m

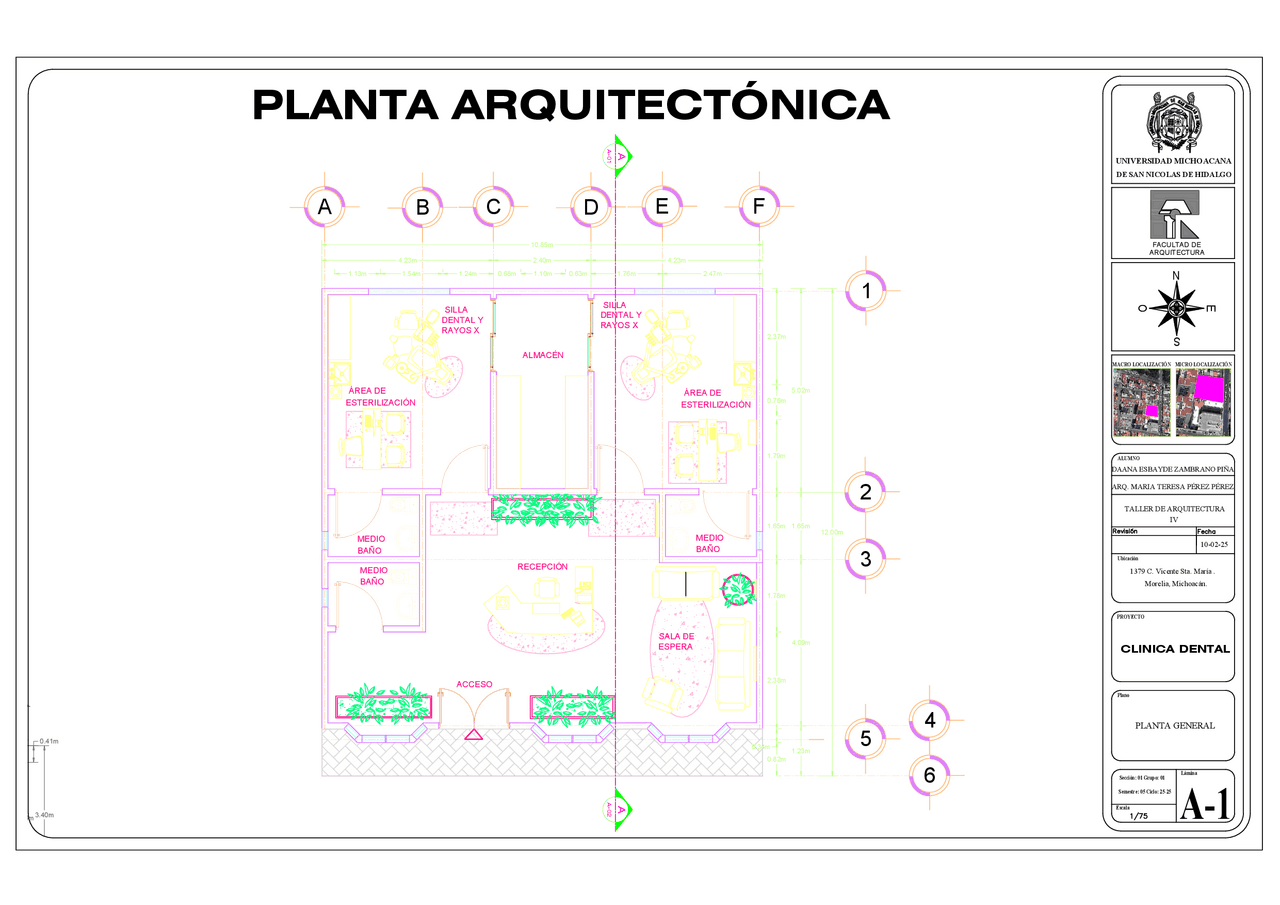

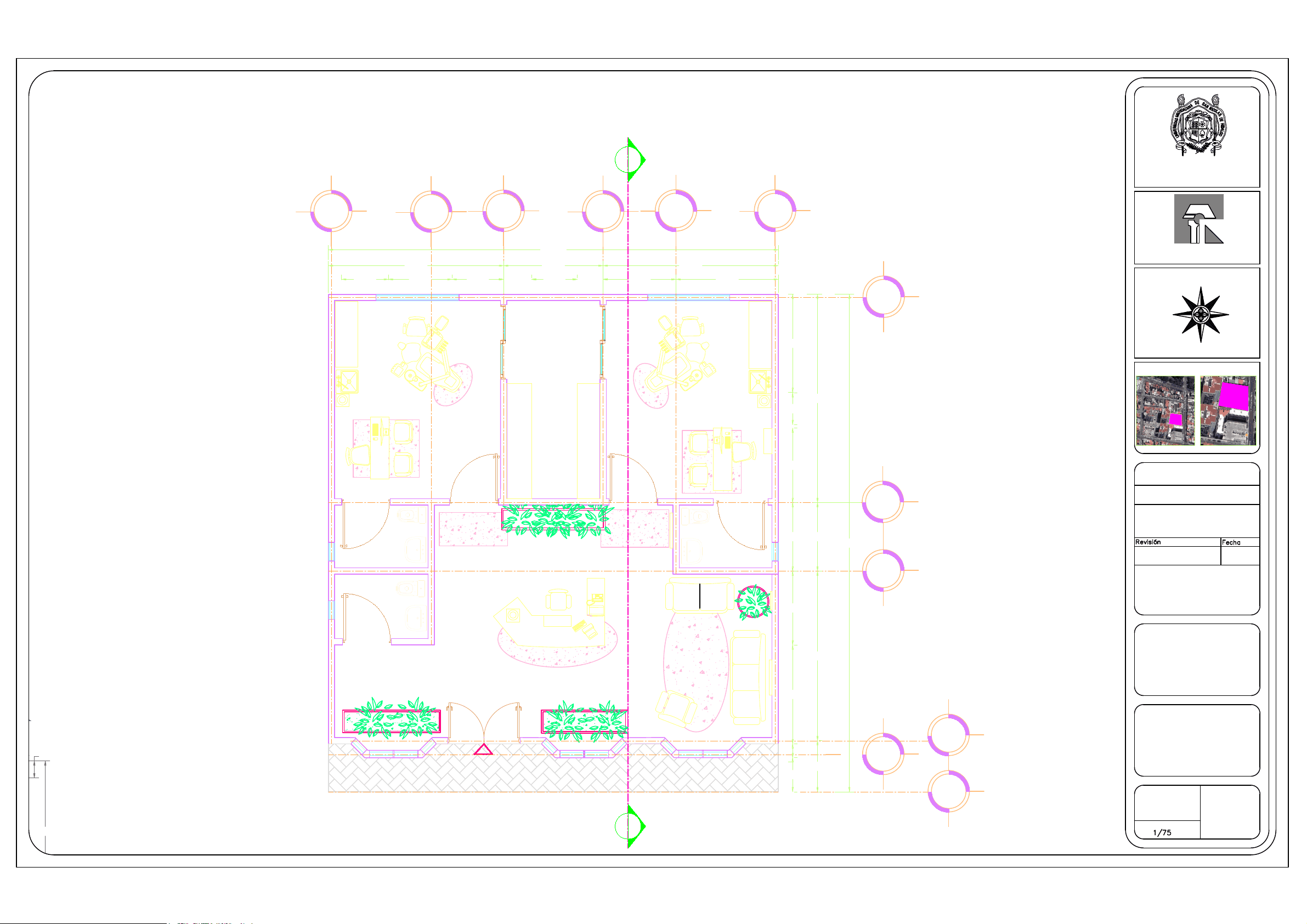

PLANTA ARQUITECTÓNICA
Escala
Lámina
Ubicación
A-1
ALUMNO
PROYECTO
Plano
CLINICA DENTAL
UNIVERSIDAD MICHOACANA
DE SAN NICOLAS DE HIDALGO
FACULTAD DE
ARQUITECTURA
O
S
E
N
DAANA ESBAYDE ZAMBRANO PIÑA
ARQ. MARIA TERESA PÉREZ PÉREZ
TALLER DE ARQUITECTURA
IV
Sección: 01 Grupo: 01
Semestre: 05 Ciclo: 25-25
MACRO LOCALIZACIÓN
10-02-25
PLANTA GENERAL
MICRO LOCALIZACIÓN
1379 C. Vicente Sta. María .
Morelia, Michoacán.
