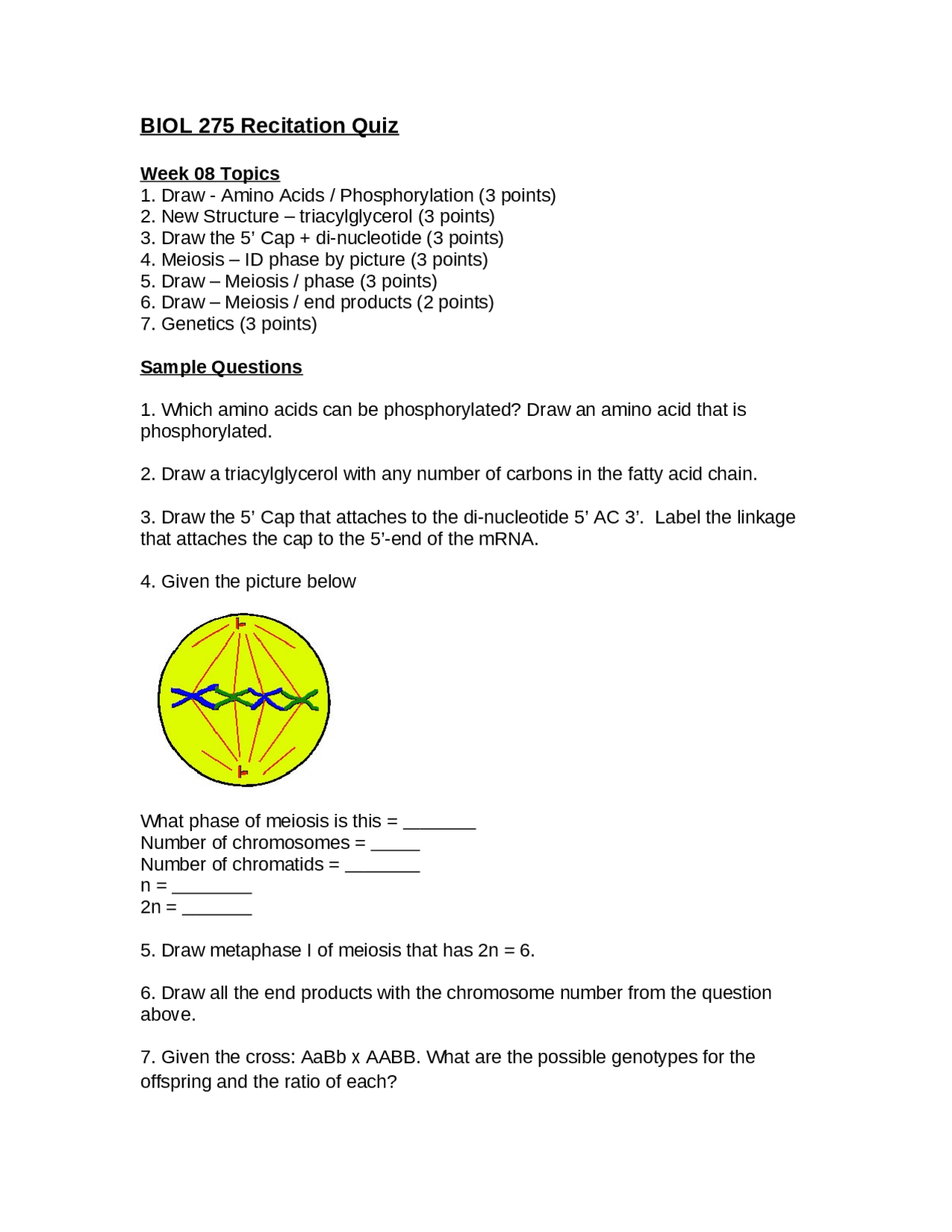

BIOL 275 Recitation Quiz
Week 08 Topics
1. Draw - Amino Acids / Phosphorylation (3 points)
2. New Structure – triacylglycerol (3 points)
3. Draw the 5’ Cap + di-nucleotide (3 points)
4. Meiosis – ID phase by picture (3 points)
5. Draw – Meiosis / phase (3 points)
6. Draw – Meiosis / end products (2 points)
7. Genetics (3 points)
Sample Questions
1. Which amino acids can be phosphorylated? Draw an amino acid that is
phosphorylated.
2. Draw a triacylglycerol with any number of carbons in the fatty acid chain.
3. Draw the 5’ Cap that attaches to the di-nucleotide 5’ AC 3’. Label the linkage
that attaches the cap to the 5’-end of the mRNA.
4. Given the picture below
What phase of meiosis is this =
Number of chromosomes =
Number of chromatids =
n =
2n =
5. Draw metaphase I of meiosis that has 2n = 6.
6. Draw all the end products with the chromosome number from the question
above.
7. Given the cross: AaBb x AABB. What are the possible genotypes for the
offspring and the ratio of each?
