ECE 4110 - Sequential Logic Design Exam, Fall 2004, Exams of Electrical and Electronics Engineering

Tennessee Technological University (TTU)Electrical and Electronics Engineering

The instructions and questions for the final exam of the ece 4110 - sequential logic design course, offered in the fall 2004 semester. The exam covers topics such as designing a binary counter using 74xxx components, verifying timing conditions in synchronous sequential logic circuits, and implementing a finite state machine (fsm) using vhdl.

Typology: Exams

Pre 2010

Uploaded on 07/30/2009

koofers-user-c9i
koofers-user-c9i 🇺🇸

9 documents

1 / 3

Toggle sidebar

This page cannot be seen from the preview

Don't miss anything!

bg1

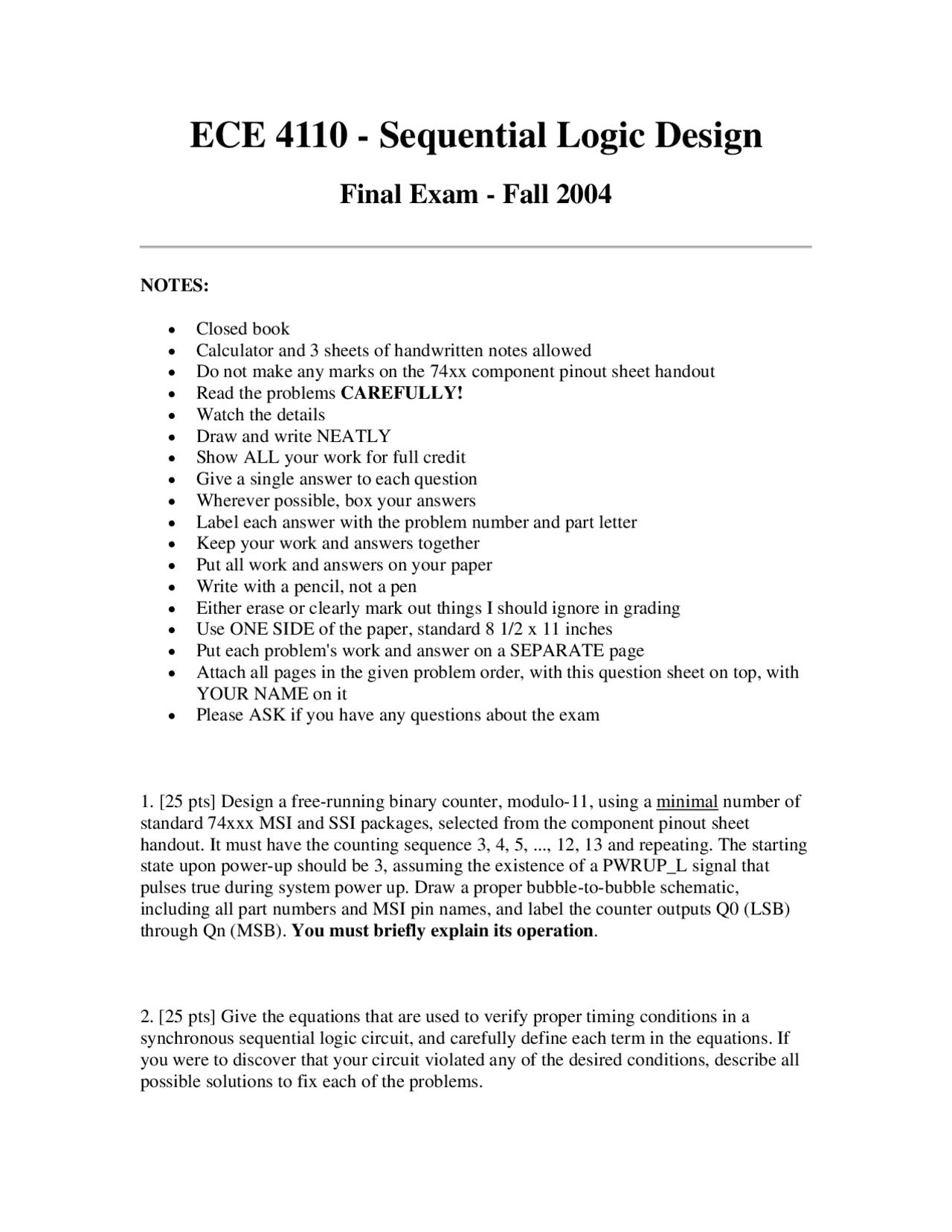

ECE 4110 - Sequential Logic Design
