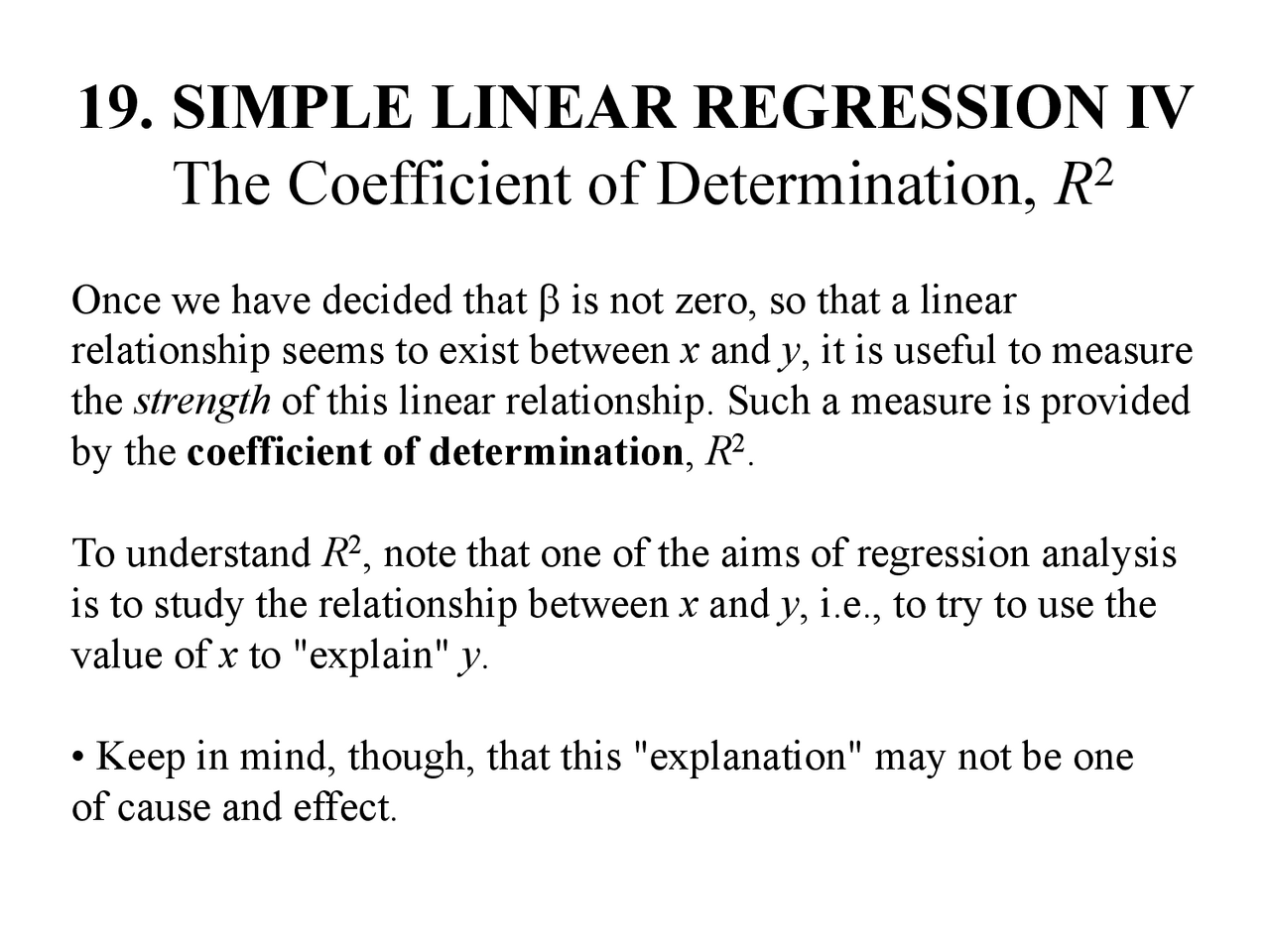

19. SIMPLE LINEAR REGRESSION IV
The Coefficient of Determination, R^2
Once we have decided that β is not zero, so that a linear relationship seems to exist between x and y , it is useful to measure the strength of this linear relationship. Such a measure is provided by the coefficient of determination , R^2.
To understand R^2 , note that one of the aims of regression analysis is to study the relationship between x and y , i.e., to try to use the value of x to "explain" y.
- Keep in mind, though, that this "explanation" may not be one of cause and effect.
Recall the Salary vs. Height data.
65.0 67.5 70.0 72.5 75.0 77.
6750
6500
6250
6000
5750
5500
Height
Salary
S 192. R-Sq 71.4% R-Sq(adj) 70.3%
Fitted Line Plot for Salary vs. Height Salary = - 902.2 + 100.4 Height
If we look at the y 's (the salaries) as a data set, we note that they are not all the same; the y 's exhibit variability. A rough measure of this variability is the total sum of squares,
Note that SST is ( n −1) times the sample variance of the y 's.
If there is a linear relationship between x and y , then the variability of the y 's is not due entirely to chance fluctuations.
Instead, the fact that the salaries are different can be partially "explained" by the fact that the heights ( x ) are different. Of course, salary is not completely explained by height, so part of the variability in the salaries remains unexplained.
( )^2.
1
=
n
i
SST yi y
- Interestingly, the variability in salaries can be broken into two parts, the first attributed to differences in height, and the second attributed to other factors not yet accounted for.
- We have the following important formula:
or SST = SSR + SSE.
Interpretation : The variability of the y 's ( SST ) can be broken into two parts, SSR + SSE.
- The first part is the regression sum of squares,
This is simply ( n −1) times the sample variance of the fitted values.
1
2 1
2 1
2
= = =
n
i
i i
n
i
i
n
i
yi y y y y y
1
2
=
n
i
SSR yi y
Now, we define the coefficient of determination by
- We see that R^2 measures the proportion of the variability of y that is "explained" by x.
An equivalent definition is
- It can be shown that 0 ≤ R^2 ≤ 1.
We will get R^2 = 1 if, and only if, all points lie exactly on a straight (non-horizontal) line.
The closer R^2 is to 1, the stronger the linear relationship between x and y.
If R^2 is near zero, then almost none of the variability of y is explained by x , so the linear relationship is weak.
SST
SSR
R =
SST
SSE
R = −
We will get R^2 = 0 if, and only if,
This can happen in a variety of ways, including: (1) All y 's lie on a horizontal line;
(2) The data points lie on a parabola y = a + b x^2 , which peaks in the middle of the range of the equally-spaced x 's.
- Note that in (2), there is a clear nonlinear relationship but no linear relationship whatsoever! So keep in mind that R^2 only measures the strength of the linear relationship.
If R^2 is large, we say that x and y are "highly correlated". In this case, there is a strong linear relationship between x and y.
If R^2 is near zero, we say that x and y are nearly "uncorrelated". In this case, the linear relationship is weak.
βˆ^ = 0.
Eg: Since 71.36% of the variability in salary is “explained” by height, the linear relationship is strong. Height is a good predictor of salary. The other 28.64% of the variability in salary is unexplained, but we could try to include more variables in our regression. This would definitely improve the R 2. (We will return to this point later.)
Eg : For the Stock Market example, the Minitab output shows that R^2 = 0.0506. Only 5.06% of the variability in Today's returns is "explained" by Yesterday's returns.
Although the linear relationship is statistically significant (low p - value), it is still quite weak (low R^2 ).
The forecast of today’s return based on yesterday’s return will not be very accurate.
Regression Analysis: Today versus Yesterday
Analysis of Variance
Source DF SS MS F-Value P-Value Regression 1 100.0 100.042 71.32 0. Error 1338 1876.7 1. Total 1339 1976.
Model Summary S R-sq R-sq(adj) 1.18433 5.06% 4.99%
Coefficients Term Coef SE Coef T-Value P-Value Constant 0.0846 0.0324 2.61 0. Yesterday -0.2249 0.0266 -8.45 0.
Regression Equation Today = 0.0846 - 0.2249 Yesterday
[R Demo: LeastSquaresFitWithRsquare]
